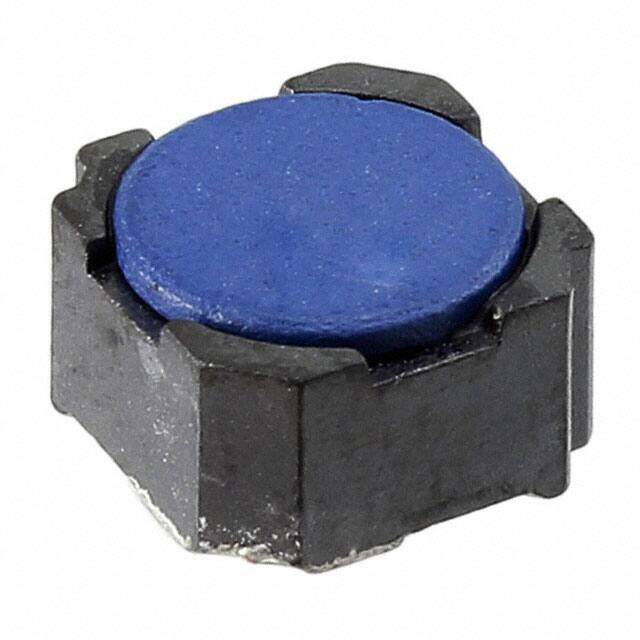

CDR7D43MNNP-150NC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDR7D43MN Nonstandard 0.287Lx0.287W 7.30mmx7.30mm 15muH
PDF
/
Inventory: 5140
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.177 4.50mm
Height 4.5mm
Technical
Case/Size Code 2929
Current - Saturation 3.35A
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 1.8A
DC Resistance (DCR) 80.4mOhm Max
Test Frequency 100kHz
Inductance 15μH
Current Rating 1.8A
Depth 7.6mm
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±25%
Size / Dimension 0.287Lx0.287W 7.30mmx7.30mm
Series CDR7D43MN
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Weight 839.99637mg
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
