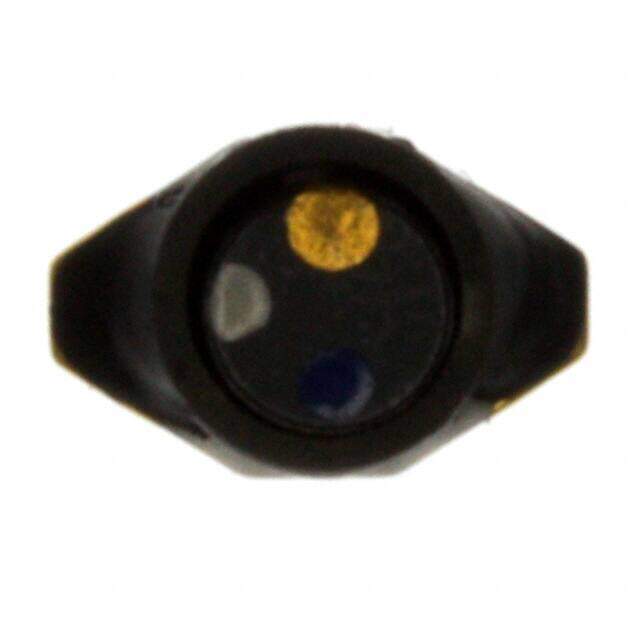

74451068 image
Favorite
74451068 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD3 Nonstandard 0.500Lx0.406W 12.70mmx10.30mm 6.8muH
PDF
/
Buying Options
Total Price: USD $1.98
Unit Price: USD $1.98
≥1 USD $1.98
≥10 USD $1.892
≥100 USD $1.70104
≥500 USD $1.57608
≥1000 USD $1.51272
Inventory: 700
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD3
Size / Dimension 0.500Lx0.406W 12.70mmx10.30mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Resistance 55mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1.2A
Shielding Shielded
Depth 4.45mm
Current Rating 1.2A
Inductance 6.8μH
Test Frequency 100kHz
DC Resistance (DCR) 65mOhm Max
Max DC Current 1.2A
Frequency - Self Resonant 36.5MHz
Inductance Frequency - Test 100kHz
Current - Saturation 500mA
Inductance Tolerance 20%
RMS Current (Irms) 1.2A

Dimensions

Height 2.921mm
Height Seated (Max) 0.118 3.00mm
Length 12.7mm
Width 4.445mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
