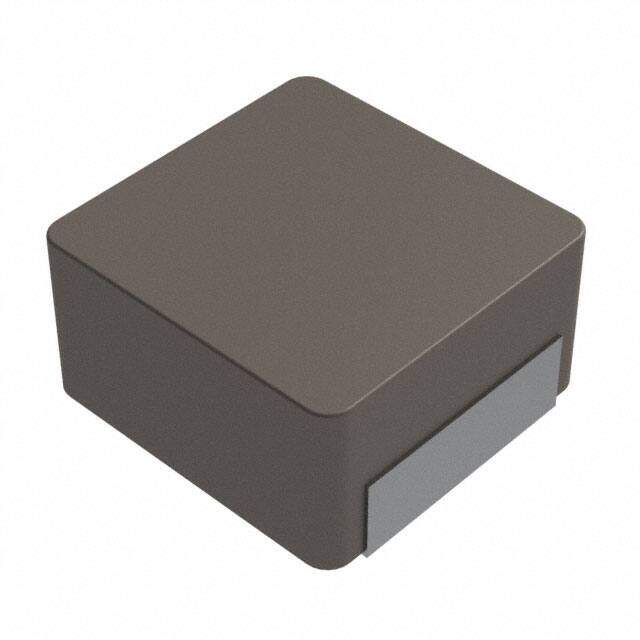

VCHA042A-6R8MS6
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Active Tape & Reel (TR) Metal fixed air core inductor -55C~165C 100kHz 92.5mOhm Max 6.8muH
PDF
/
Buying Options
Total Price: USD $1.23
Unit Price: USD $1.232
≥1 USD $1.232
≥10 USD $1.0384
≥100 USD $0.944416
≥500 USD $0.887744
≥1000 USD $0.73656
≥3000 USD $0.679923
Inventory: 1128
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.083 2.10mm
Technical
Current - Saturation 2.2A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 92.5mOhm Max
Inductance 6.8μH
Shielding Unshielded
Current Rating (Amps) 2.9A
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.165Lx0.157W 4.20mmx4.00mm
Series VCHA042A
Packaging Tape & Reel (TR)
Operating Temperature -55°C~165°C
Physical
Material - Core Metal
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
