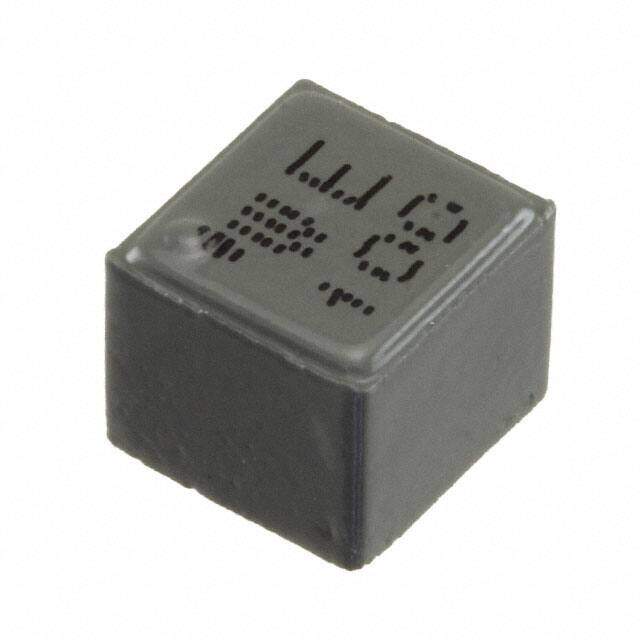

74439358100
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-XHMI Nonstandard 0.346Lx0.327W 8.80mmx8.30mm 10muH
PDF
/
Buying Options
Total Price: USD $3.84
Unit Price: USD $3.840064
≥1 USD $3.840064
≥10 USD $3.622697
≥100 USD $3.41764
≥500 USD $3.224189
≥1000 USD $3.041696
Inventory: 9096
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 8080
Material - Core Metal Composite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-XHMI
Size / Dimension 0.346Lx0.327W 8.80mmx8.30mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 5.8A
Shielding Shielded
Current Rating 5.8A
Inductance 10μH
Test Frequency 100kHz
DC Resistance (DCR) 20mOhm
Frequency - Self Resonant 17MHz
Inductance Frequency - Test 100kHz
Current - Saturation 13A
Inductance Tolerance 20%
RMS Current (Irms) 5.8A
Dimensions
Height Seated (Max) 0.346 8.80mm
Length 8.7884mm
Width 8.3058mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
