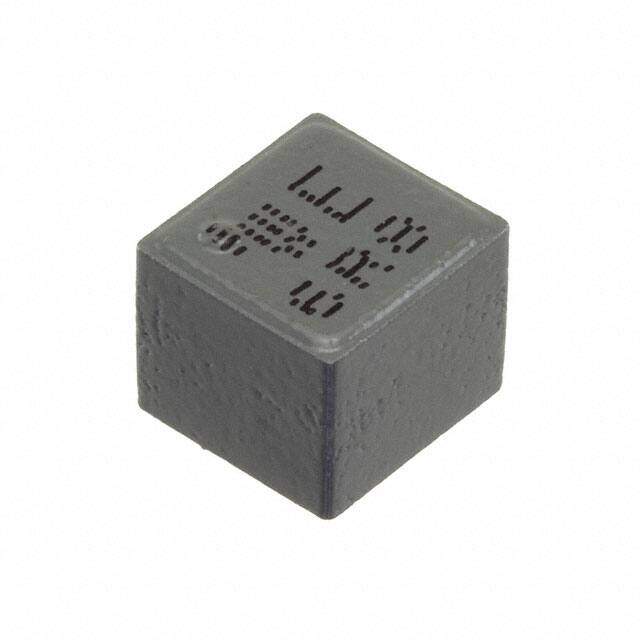

74439358068
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-XHMI Nonstandard 0.346Lx0.327W 8.80mmx8.30mm 6.8muH
PDF
/
Buying Options
Total Price: USD $3.85
Unit Price: USD $3.852836
≥1 USD $3.852836
≥10 USD $3.634755
≥100 USD $3.429011
≥500 USD $3.234922
≥1000 USD $3.051808
Inventory: 1200
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 8.3058mm
Length 8.7884mm
Height Seated (Max) 0.315 8.00mm
Technical
RMS Current (Irms) 7.2A
Inductance Tolerance 20%
Current - Saturation 15A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 20MHz
DC Resistance (DCR) 13.5mOhm
Test Frequency 100kHz
Inductance 6.8μH
Current Rating 7.2A
Shielding Shielded
Current Rating (Amps) 7.2A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.346Lx0.327W 8.80mmx8.30mm
Series WE-XHMI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Metal Composite
Supplier Device Package 8080
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 17 Weeks
