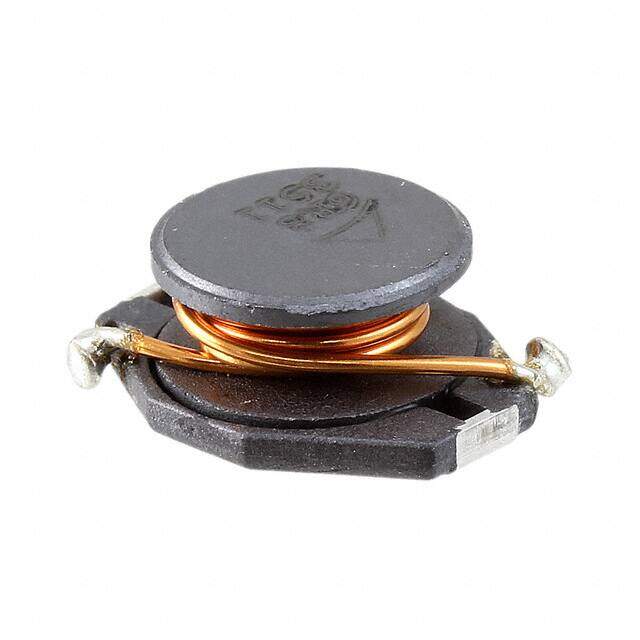

B82476B1682M100
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
EPCOS B82476B1682M100 INDUCTOR, PWR, 6.8UH, 4.8A, 20%, 0.1MHZ
PDF
/
Buying Options
Total Price: USD $1.41
Unit Price: USD $1.408
≥1 USD $1.408
≥10 USD $1.1924
≥100 USD $1.08416
≥500 USD $1.019216
≥1000 USD $0.845768
≥3000 USD $0.780736
Inventory: 376
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.200 5.08mm
Technical
Current - Saturation 4.6A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 21mOhm Max
Inductance 6.8μH
Shielding Unshielded
Current Rating (Amps) 4.8A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.510Lx0.370W 12.95mmx9.40mm
Series B82476B1
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
