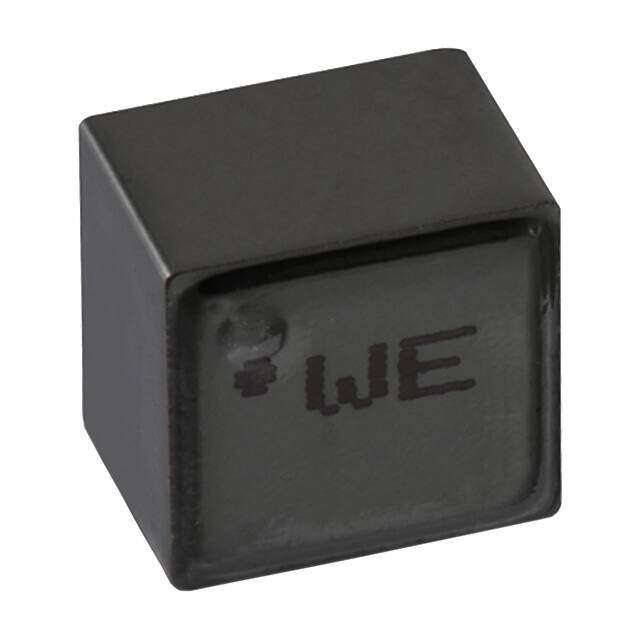

744393440056
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 560NH 16A 2.9 MOHM
PDF
/
Buying Options
Total Price: USD $2.2
Unit Price: USD $2.198011
≥1 USD $2.198011
≥10 USD $2.073599
≥100 USD $1.956222
≥500 USD $1.845491
≥1000 USD $1.741022
Inventory: 1185
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Metal Composite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-XHMI
Size / Dimension 0.262Lx0.254W 6.65mmx6.45mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 16A
Shielding Shielded
Inductance 560nH
DC Resistance (DCR) 2.9mOhm
Frequency - Self Resonant 110MHz
Inductance Frequency - Test 100kHz
Current - Saturation 30.5A
Inductance Tolerance 20%
RMS Current (Irms) 16A
Dimensions
Height Seated (Max) 0.130 3.30mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
