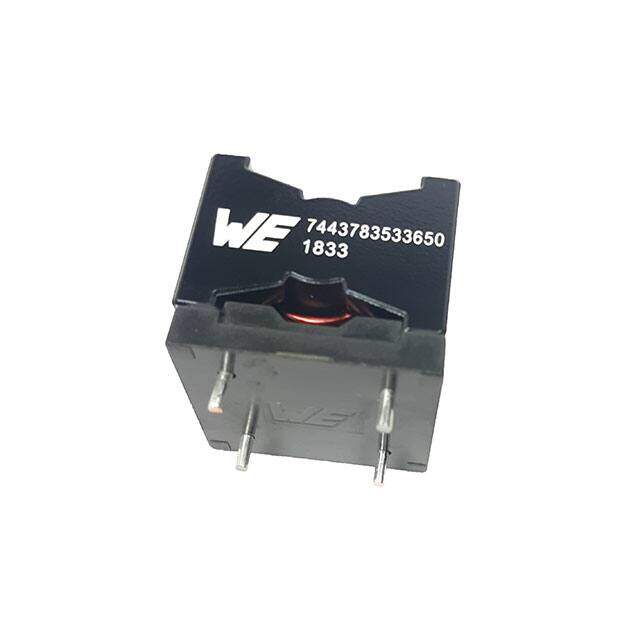

7443783533650
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active Bulk fixed air core inductor -40C~125C 4.28MHz 14.44mOhm Max 65muH
PDF
/
Buying Options
Total Price: USD $26.36
Unit Price: USD $26.364345
≥1 USD $26.364345
≥198 USD $10.520268
≥504 USD $10.168411
≥999 USD $9.995108
Inventory: 1160
Minimum: 1
-
+
Technical Details
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Series WE-HCFT
Size / Dimension 1.417Lx1.358W 36.00mmx34.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 17.2A
Shielding Shielded
Inductance 65μH
DC Resistance (DCR) 14.44mOhm Max
Frequency - Self Resonant 4.28MHz
Inductance Frequency - Test 100kHz
Current - Saturation 26.6A
Dimensions
Height Seated (Max) 1.378 35.00mm
Compliance
RoHS Status ROHS3 Compliant
Physical
Material - Core Manganese Zinc Ferrite (MnZn)
Package / Case Nonstandard
Mounting Type Through Hole
Supply Chain
Factory Lead Time 35 Weeks
