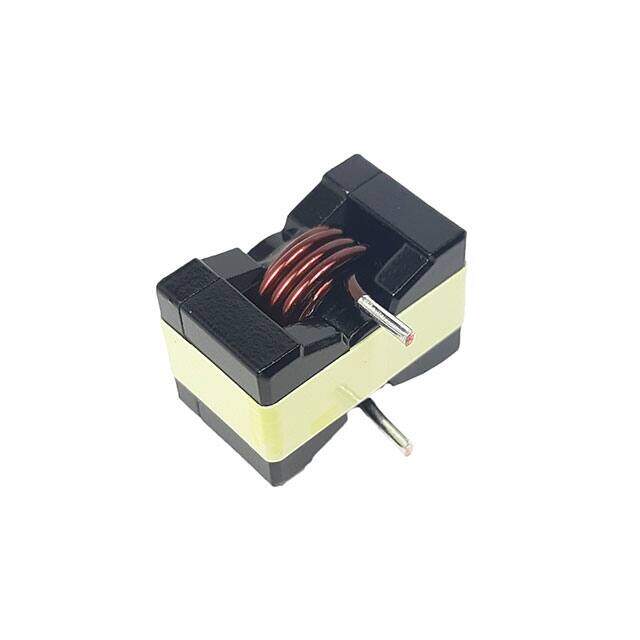

7443782012068
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active Bulk fixed air core inductor -40C~125C 21MHz 5mOhm Max 6.8muH
PDF
/
Buying Options
Total Price: USD $8.72
Unit Price: USD $8.71503
≥1 USD $8.71503
≥200 USD $3.477872
≥480 USD $3.361024
≥1000 USD $3.303256
Inventory: 1251
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.531 13.50mm
Technical
Current - Saturation 30.6A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 21MHz
DC Resistance (DCR) 5mOhm Max
Inductance 6.8μH
Shielding Shielded
Current Rating (Amps) 20.6A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.866Lx0.669W 22.00mmx17.00mm
Series WE-HCFT
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Material - Core Manganese Zinc Ferrite (MnZn)
Package / Case Nonstandard
Mounting Type Through Hole
Supply Chain
Factory Lead Time 63 Weeks
