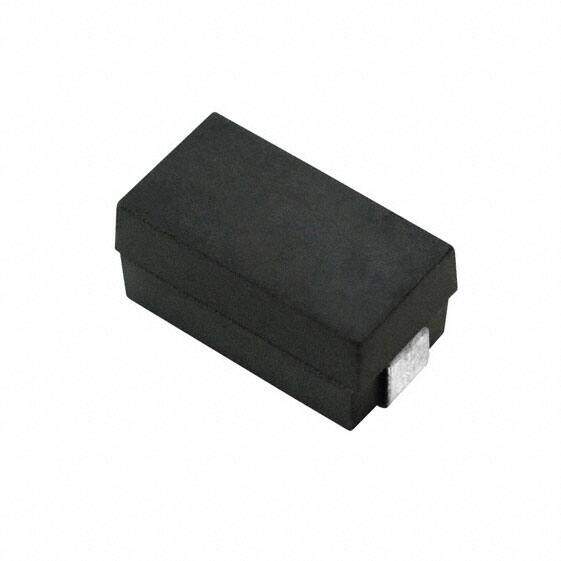

P3519R-682J
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
P3519R Nonstandard 0.358Lx0.190W 9.09mmx4.83mm 6.8muH
PDF
/
Buying Options
Total Price: USD $2.62
Unit Price: USD $2.6224
≥1 USD $2.6224
≥10 USD $2.22992
≥100 USD $2.055328
≥500 USD $1.83656
Inventory: 533
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -55°C~130°C
Packaging Tape & Reel (TR)
Published 2015
Series P3519R
Size / Dimension 0.358Lx0.190W 9.09mmx4.83mm
Tolerance ±5%
JESD-609 Code e1
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)
HTS Code 8504.50.80.00
Packing Method TR, 13 Inch
Shielding NO
Number of Functions 1
Construction Rectangular
Current Rating 1.46A
Inductance 6.8μH
Test Frequency 10kHz
DC Resistance (DCR) 137mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 10kHz
Current - Saturation 1.66A
Case/Size Code 3720
Rated Current-Max 1.47A
Dimensions
Height Seated (Max) 0.185 4.70mm
Compliance
RoHS Status ROHS3 Compliant
