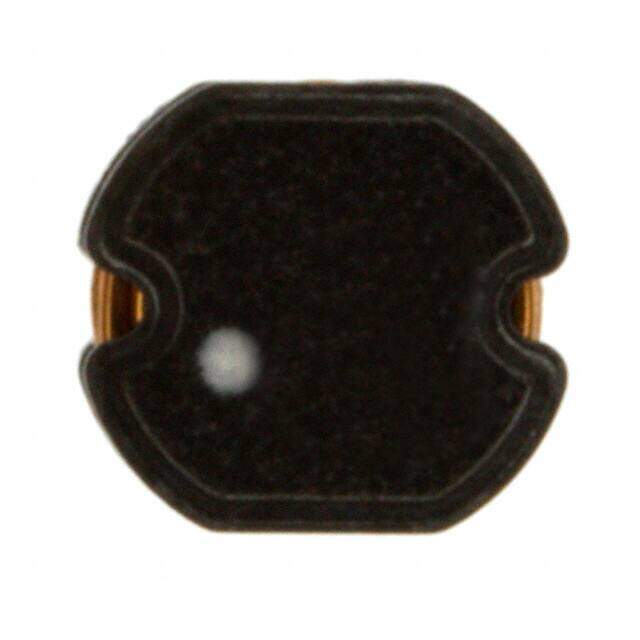

74437368047 image
Favorite
74437368047 image
Favorite

74437368047

Würth Elektronik
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-LHMI Nonstandard 0.433Lx0.394W 11.00mmx10.00mm 4.7muH
PDF
/
Buying Options
Total Price: USD $2.25
Unit Price: USD $2.2528
≥1 USD $2.2528
≥10 USD $2.2132
≥100 USD $2.04248
≥500 USD $1.87264
≥1000 USD $1.78728
Inventory: 1082
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Iron Powder

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-LHMI
Size / Dimension 0.433Lx0.394W 11.00mmx10.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Molded
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 7A
Shielding Shielded
Depth 10mm
Current Rating 7A
Frequency 16MHz
Inductance 4.7μH
Test Frequency 100kHz
DC Resistance (DCR) 15.5mOhm Max
Max DC Current 7A
Frequency - Self Resonant 16MHz
Inductance Frequency - Test 100kHz
Current - Saturation 19A
Inductance Tolerance 20%
RMS Current (Irms) 7A
Series Resistance 15.5mOhm

Dimensions

Height 3.8mm
Height Seated (Max) 0.157 4.00mm
Length 11mm
Width 10mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
