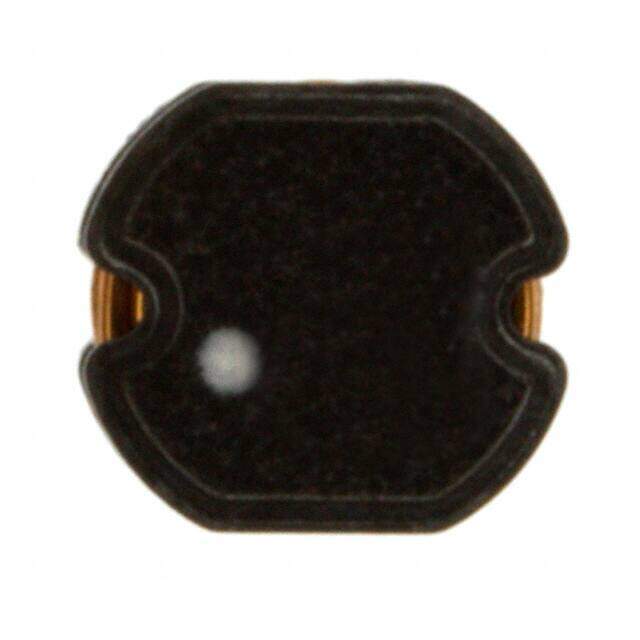

744773047
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD2 Nonstandard 0.177Lx0.157W 4.50mmx4.00mm 4.7muH
PDF
/
Buying Options
Total Price: USD $2.21
Unit Price: USD $2.21255
≥1 USD $2.21255
≥10 USD $1.81545
≥100 USD $1.75845
≥500 USD $1.70145
≥1000 USD $1.6454
Inventory: 1170
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 110mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1.82A
Shielding Unshielded
Depth 4mm
Current Rating 1.82A
Inductance 4.7μH
Test Frequency 10kHz
DC Resistance (DCR) 110mOhm Max
Max DC Current 1.82A
Frequency - Self Resonant 50MHz
Inductance Frequency - Test 10kHz
Current - Saturation 2.46A
Inductance Tolerance 20%
RMS Current (Irms) 1.82A
Series Resistance 59mOhm
Dimensions
Height 3.2mm
Height Seated (Max) 0.138 3.50mm
Length 4.5mm
Width 3.9878mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
