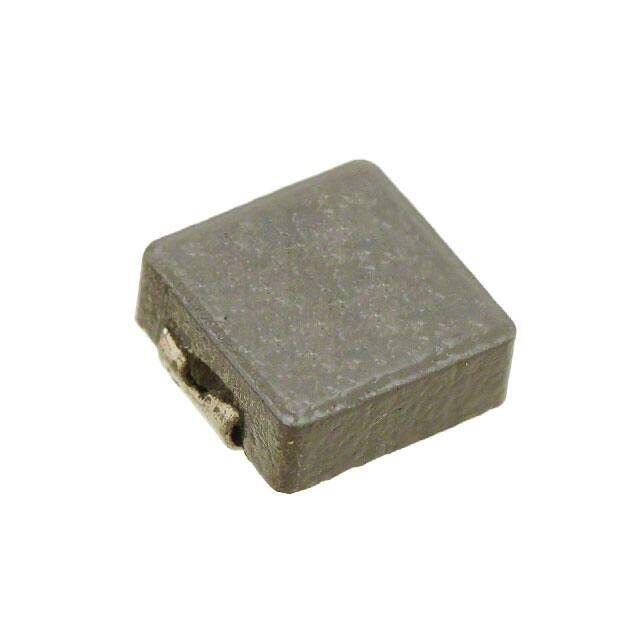

744373460082
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-LHMI Nonstandard 0.287Lx0.260W 7.30mmx6.60mm 820nH
PDF
/
Inventory: 9205
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 6.6mm
Length 7.3mm
Height Seated (Max) 0.118 3.00mm
Height 2.8mm
Technical
Series Resistance 8mOhm
RMS Current (Irms) 9A
Inductance Tolerance 20%
Current - Saturation 24A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 60MHz
Max DC Current 9A
DC Resistance (DCR) 8mOhm Max
Test Frequency 100kHz
Inductance 820nH
Frequency 60MHz
Current Rating 9A
Depth 6.6mm
Shielding Shielded
Current Rating (Amps) 9A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Molded
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Tolerance ±20%
Size / Dimension 0.287Lx0.260W 7.30mmx6.60mm
Series WE-LHMI
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C
Physical
Material - Core Iron Powder
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

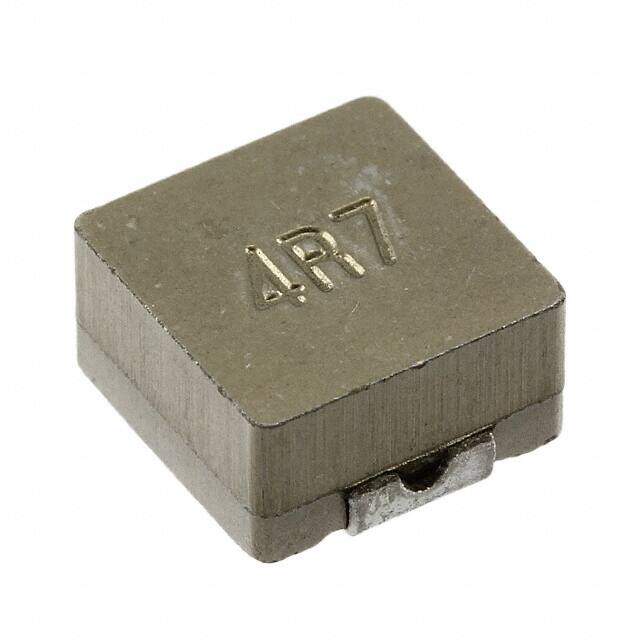

Alternative Model
