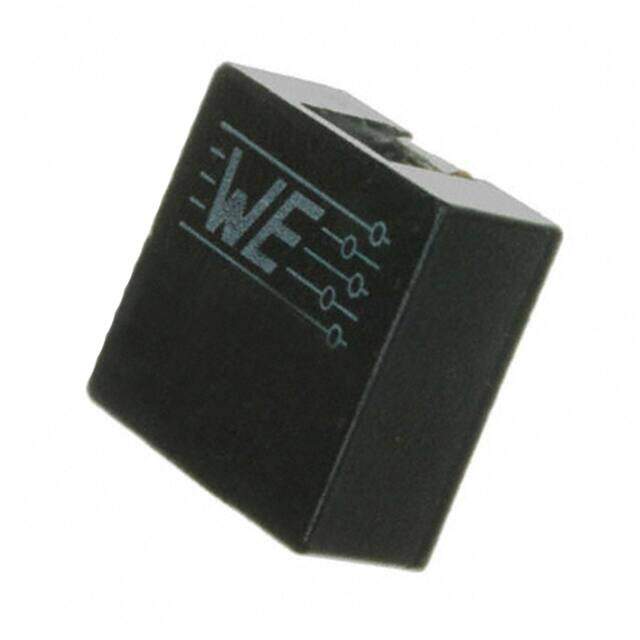

7443556190
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCI Nonstandard 0.720Lx0.717W 18.30mmx18.20mm 1.9muH
PDF
/
Buying Options
Total Price: USD $8.06
Unit Price: USD $8.05505
≥1 USD $8.05505
≥10 USD $6.60915
≥100 USD $6.403
≥500 USD $6.1959
≥1000 USD $5.98975
Inventory: 5508
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 18.2mm
Length 18.3mm
Height Seated (Max) 0.362 9.20mm
Height 8.9mm
Technical
Series Resistance 1.2mOhm
RMS Current (Irms) 32.5A
Inductance Tolerance 20%
Current - Saturation 52A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 51MHz
Max DC Current 32.5A
DC Resistance (DCR) 1.2mOhm
Test Frequency 100kHz
Inductance 1.9μH
Current Rating 32.5A
Depth 18.2mm
Shielding Shielded
Current Rating (Amps) 32.5A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 1.2mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.720Lx0.717W 18.30mmx18.20mm
Series WE-HCI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Supplier Device Package 1890
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks

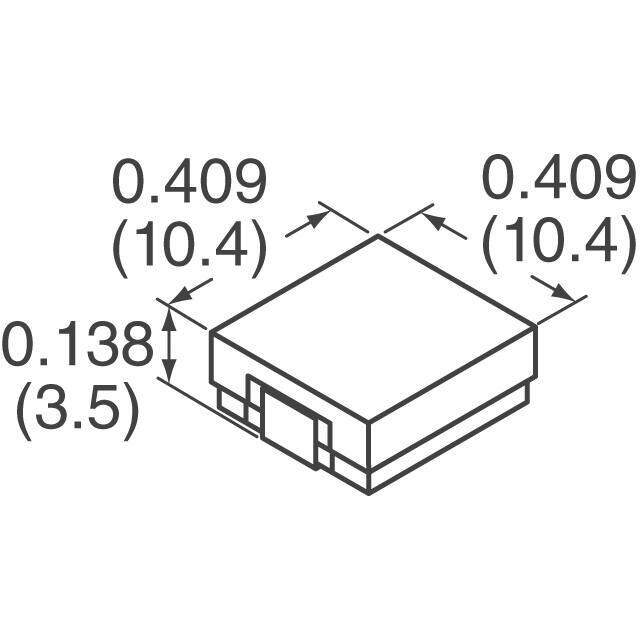

Alternative Model
