HC8LP-1R9-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
HC8LP Nonstandard 0.429Lx0.409W 10.90mmx10.40mm 1.9muH
PDF
/
Inventory: 3239
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant

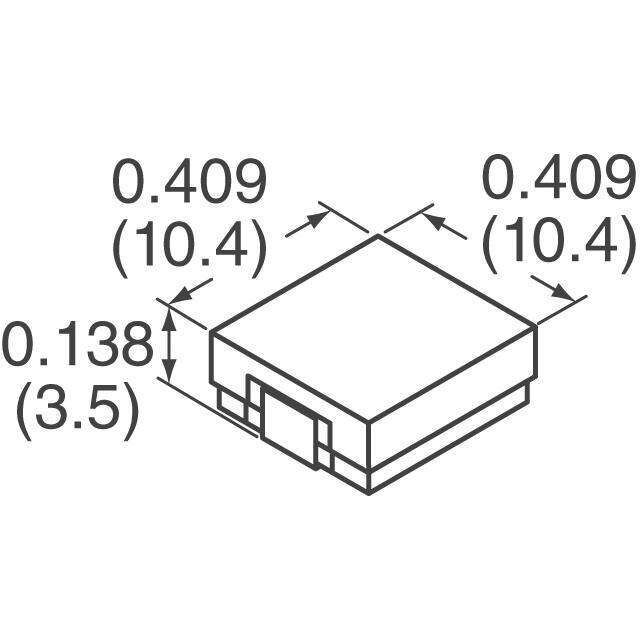

Dimensions
Width 10.3886mm
Length 10.8966mm
Height Seated (Max) 0.138 3.50mm
Height 3.5mm
Technical
Current - Saturation 15.5A
Inductance Frequency - Test 100kHz
Max DC Current 15.5A
DC Resistance (DCR) 11.5mOhm Max
Test Frequency 100kHz
Inductance 1.9μH
Current Rating 10.1A
Shielding Unshielded
Current Rating (Amps) 10.1A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 155°C
Resistance 11.5mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.429Lx0.409W 10.90mmx10.40mm
Series HC8LP
Packaging Tape & Reel (TR)
Operating Temperature -40°C~155°C
Physical
Material - Core Iron Powder
Weight 2.721554g
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
