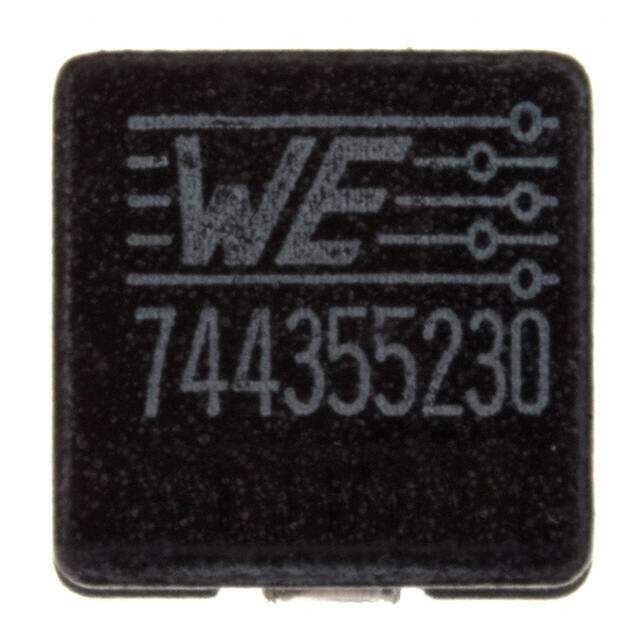

744355230
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCI Nonstandard 0.413Lx0.402W 10.50mmx10.20mm 300nH
PDF
/
Buying Options
Total Price: USD $2.27
Unit Price: USD $2.2691
≥1 USD $2.2691
≥10 USD $2.14066
≥100 USD $2.019484
≥500 USD $1.905179
≥1000 USD $1.797339
Inventory: 1097
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Supplier Device Package 1040
Technical
Operating Temperature -40°C~155°C
Packaging Tape & Reel (TR)
Series WE-HCI
Size / Dimension 0.413Lx0.402W 10.50mmx10.20mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 1.1mOhm
Max Operating Temperature 155°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 22A
Shielding Shielded
Depth 10.2mm
Current Rating 22A
Inductance 300nH
Test Frequency 100kHz
DC Resistance (DCR) 1.1mOhm
Max DC Current 22A
Frequency - Self Resonant 170MHz
Inductance Frequency - Test 100kHz
Current - Saturation 35A
Inductance Tolerance 20%
RMS Current (Irms) 22A
Series Resistance 1.1Ohm
Dimensions
Height 4mm
Height Seated (Max) 0.165 4.20mm
Length 10.5mm
Width 10.2mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
