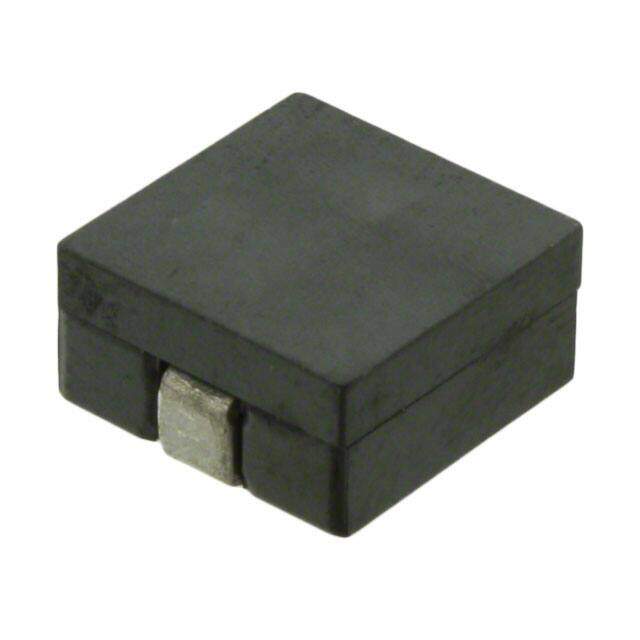

744306030 image
Favorite
744306030 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-HCM Nonstandard 0.413Lx0.406W 10.50mmx10.30mm 300nH
PDF
/
Buying Options
Total Price: USD $1.67
Unit Price: USD $1.672
≥1 USD $1.672
≥10 USD $1.6368
≥100 USD $1.5136
≥500 USD $1.452
≥1000 USD $1.3552
Inventory: 508
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Width 10.3mm
Length 10.4902mm
Height Seated (Max) 0.217 5.50mm
Height 5mm

Technical

Inductance Tolerance 20%
Current - Saturation 24A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 45MHz
Max DC Current 26A
DC Resistance (DCR) 0.26mOhm
Test Frequency 100kHz
Inductance 300nH
Current Rating 25A
Shielding Shielded
Current Rating (Amps) 25A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.413Lx0.406W 10.50mmx10.30mm
Series WE-HCM
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C

Physical

Material - Core Manganese Zinc Ferrite (MnZn)
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 10 Weeks
