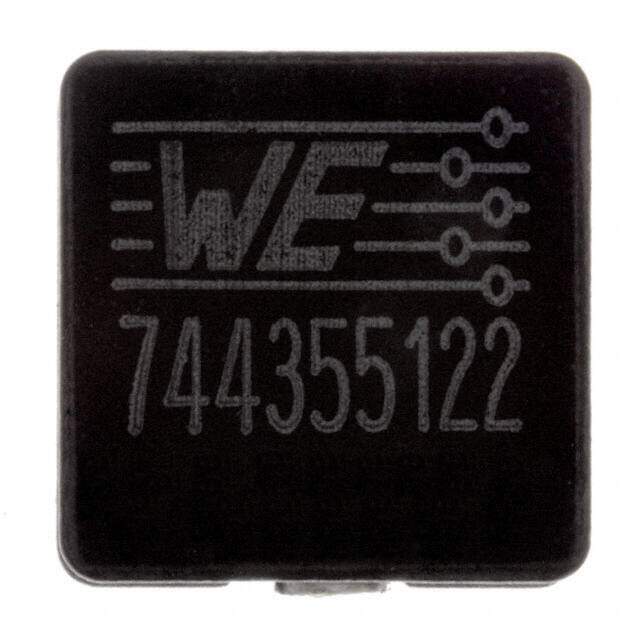

744355122
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCI Nonstandard 0.512Lx0.504W 13.00mmx12.80mm 200nH
PDF
/
Buying Options
Total Price: USD $2.77
Unit Price: USD $2.76545
≥1 USD $2.76545
≥10 USD $2.26955
≥100 USD $2.1983
≥500 USD $2.12705
≥1000 USD $2.05675
Inventory: 1140
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 12.8mm
Length 13.2mm
Height Seated (Max) 0.256 6.50mm
Height 6.2mm
Technical
Series Resistance 350mOhm
RMS Current (Irms) 32A
Inductance Tolerance 20%
Current - Saturation 65A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 230MHz
Max DC Current 32A
DC Resistance (DCR) 0.35mOhm
Test Frequency 100kHz
Inductance 200nH
Current Rating 32A
Depth 12.8mm
Shielding Shielded
Current Rating (Amps) 32A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 155°C
Resistance 350μOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.512Lx0.504W 13.00mmx12.80mm
Series WE-HCI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~155°C
Physical
Supplier Device Package 1365
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
