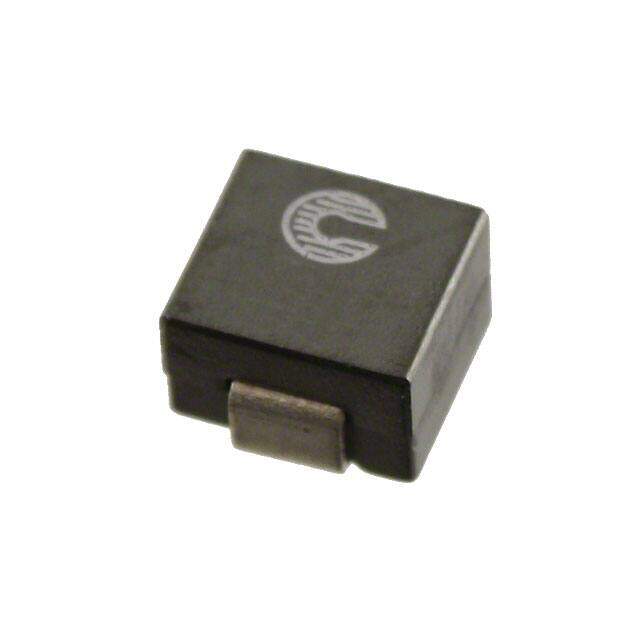

FP0805R1-R20-R image
Favorite
FP0805R1-R20-R image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description FLAT-PAC FP0805 Nonstandard 0.300Lx0.295W 7.62mmx7.49mm 200nH
PDF
/
Buying Options
Total Price: USD $1.66
Unit Price: USD $1.6632
≥1 USD $1.6632
≥10 USD $1.41416
≥100 USD $1.303456
≥500 USD $1.164768
≥1000 USD $0.97064
≥3000 USD $0.942867
Inventory: 2044
Minimum: 1
-
+

Technical Details

Technical

Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 65A
Shielding Unshielded
Depth 7.49mm
Current Rating 65A
Military Standard Not
Inductance 200nH
Test Frequency 100kHz
DC Resistance (DCR) 0.17mOhm
Max DC Current 20A
Inductance Frequency - Test 100kHz
Current - Saturation 20A
DC Current 65A
Self Resonant Frequency 2MHz
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.300Lx0.295W 7.62mmx7.49mm
Series FLAT-PAC, FP0805
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Dimensions

Height 4.96mm
Height Seated (Max) 0.195 4.96mm
Length 7.62mm
Width 7.49mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free

Physical

Material - Core Ferrite
Weight 453.59237mg
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 25 Weeks
