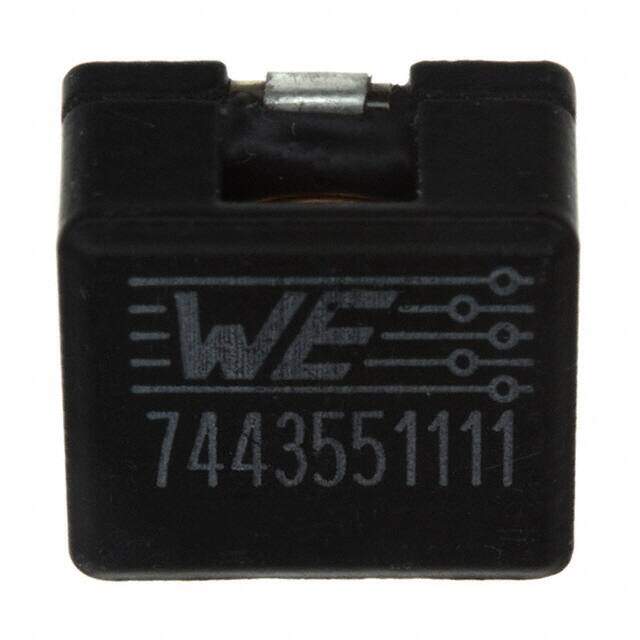

7443551111
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 11.3UH 11A 9.1 MOHM
PDF
/
Buying Options
Total Price: USD $26.92
Unit Price: USD $26.9192
≥1 USD $26.9192
≥10 USD $22.0875
≥100 USD $21.39685
≥500 USD $20.70715
≥1000 USD $20.0165
Inventory: 1163
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 1365
Technical
Operating Temperature -40°C~155°C
Packaging Tape & Reel (TR)
Series WE-HCI
Size / Dimension 0.512Lx0.504W 13.00mmx12.80mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 11A
Shielding Shielded
Inductance 11.3μH
DC Resistance (DCR) 9.1mOhm
Frequency - Self Resonant 12MHz
Inductance Frequency - Test 100kHz
Current - Saturation 9.5A
Inductance Tolerance 20%
Dimensions
Height Seated (Max) 0.256 6.50mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
