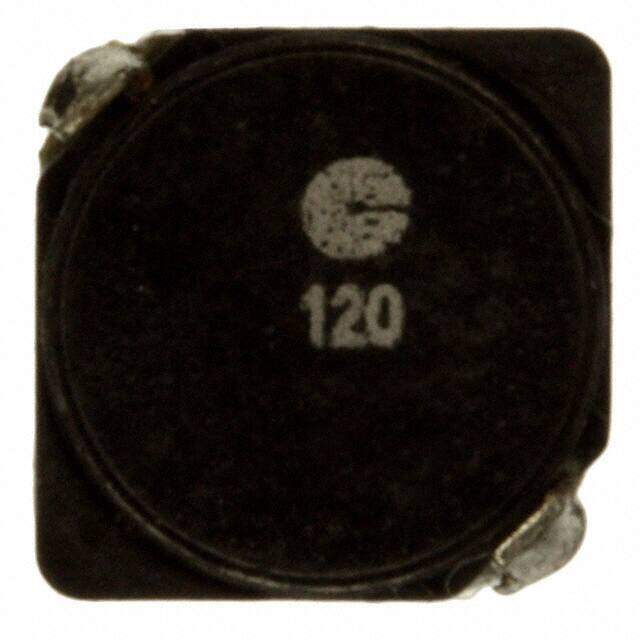

SD6030-120-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SD6030 Nonstandard 0.236Lx0.236W 6.00mmx6.00mm 11.3muH
PDF
/
Buying Options
Total Price: USD $0.83
Unit Price: USD $0.83442
≥1 USD $0.83442
Inventory: 4008
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 453.59237mg
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series SD6030
Size / Dimension 0.236Lx0.236W 6.00mmx6.00mm
Tolerance ±30%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1.99A
Shielding Shielded
Depth 6mm
Current Rating 1.99A
Military Standard Not
Inductance 11.3μH
Test Frequency 100kHz
DC Resistance (DCR) 76mOhm Max
Max DC Current 1.2A
Inductance Frequency - Test 100kHz
Current - Saturation 1.2A
Inductance Tolerance 30%
RMS Current (Irms) 1.99A
Dimensions
Height 3mm
Height Seated (Max) 0.118 3.00mm
Length 5.9944mm
Width 5.9944mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
