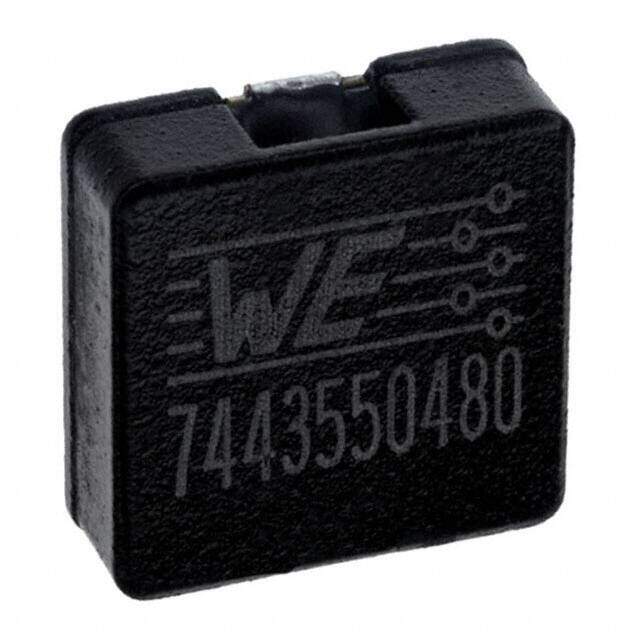

7443550480
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCI Nonstandard 0.512Lx0.504W 13.00mmx12.80mm 4.8muH
PDF
/
Buying Options
Total Price: USD $2.31
Unit Price: USD $2.30945
≥1 USD $2.30945
≥10 USD $1.89525
≥100 USD $1.8354
≥500 USD $1.7765
≥1000 USD $1.7176
Inventory: 869
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 12.8mm
Length 13.0048mm
Height Seated (Max) 0.197 5.00mm
Height 4.7mm
Technical
Series Resistance 10.5Ohm
RMS Current (Irms) 11A
Inductance Tolerance 20%
Current - Saturation 13A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 28MHz
Max DC Current 11A
DC Resistance (DCR) 10.5mOhm
Test Frequency 100kHz
Inductance 4.8μH
Current Rating 11A
Shielding Shielded
Current Rating (Amps) 11A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 155°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.512Lx0.504W 13.00mmx12.80mm
Series WE-HCI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~155°C
Physical
Supplier Device Package 1350
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
