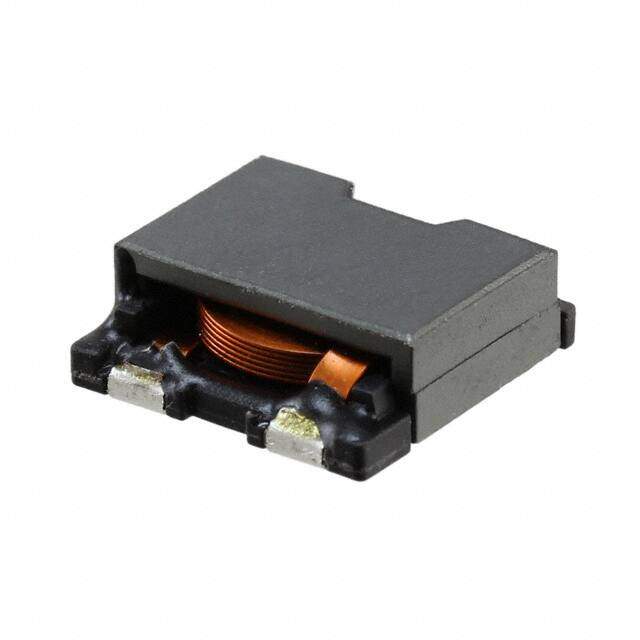

CDEP134NP-4R8MC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDEP134 Nonstandard 0.531Lx0.531W 13.50mmx13.50mm 4.8muH
PDF
/
Buying Options
Total Price: USD $2.36
Unit Price: USD $2.359217
≥1 USD $2.359217
≥10 USD $2.225682
≥100 USD $2.099692
≥500 USD $1.980845
≥1000 USD $1.868722
Inventory: 903
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2006
Series CDEP134
Size / Dimension 0.531Lx0.531W 13.50mmx13.50mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Matte Tin (Sn)
HTS Code 8504.50.80.00
Packing Method TR
Shielding Shielded
Number of Functions 1
Depth 13.9mm
Reach Compliance Code unknown
Current Rating 7.5A
Military Standard Not
Inductance 4.8μH
Test Frequency 100kHz
DC Resistance (DCR) 12mOhm Max
Max DC Current 9.3A
Inductor Application POWER INDUCTOR
Case/Size Code 5353
DC Current 7.5A
Dimensions
Height 4.9mm
Height Seated (Max) 0.197 5.00mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
