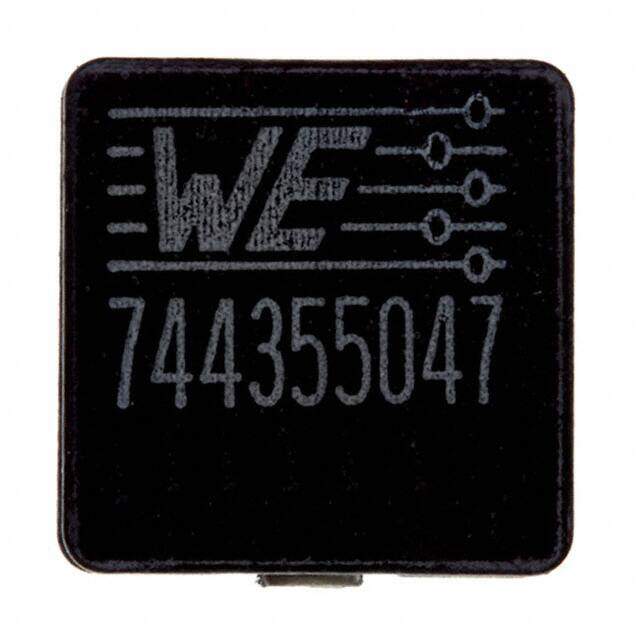

744355047
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCI Nonstandard 0.512Lx0.504W 13.00mmx12.80mm 470nH
PDF
/
Buying Options
Total Price: USD $2.31
Unit Price: USD $2.30945
≥1 USD $2.30945
≥10 USD $1.89525
≥100 USD $1.8354
≥500 USD $1.7765
≥1000 USD $1.7176
Inventory: 1031
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 12.8mm
Length 13mm
Height Seated (Max) 0.197 5.00mm
Height 4.7mm
Technical
Series Resistance 900mOhm
Inductance Tolerance 20%
Current - Saturation 50A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 95MHz
Max DC Current 26A
DC Resistance (DCR) 0.9mOhm
Test Frequency 100kHz
Inductance 470nH
Current Rating 26A
Depth 12.8mm
Shielding Shielded
Current Rating (Amps) 26A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 155°C
Resistance 900μOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.512Lx0.504W 13.00mmx12.80mm
Series WE-HCI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~155°C
Physical
Supplier Device Package 1350
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
