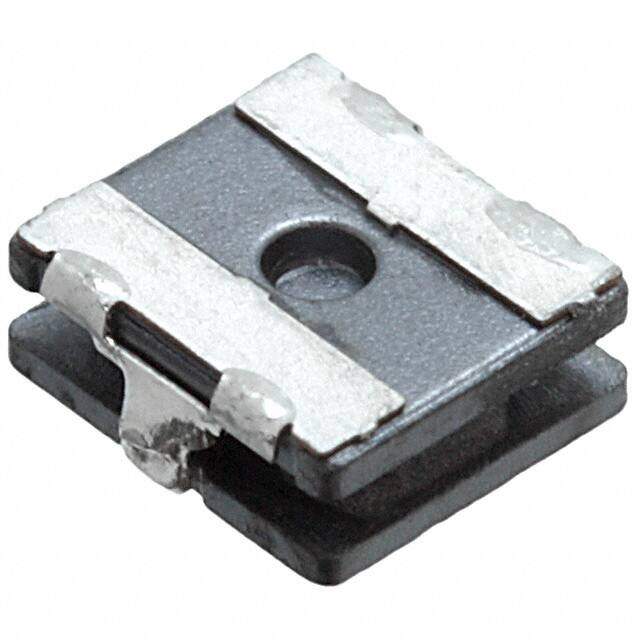

ELL-5PRR47N
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
R Nonstandard 0.197Lx0.197W 5.00mmx5.00mm 470nH
PDF
/
Inventory: 5187
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height Seated (Max) 0.079 2.00mm
Height 1.85mm
Technical
Series Resistance 12mOhm
RMS Current (Irms) 3.9A
DC Current 3.9A
Inductance Tolerance 30%
Max DC Current 5.5A
Current 3A
DC Resistance (DCR) 12mOhm
Test Frequency 100kHz
Inductance 470nH
Lead Pitch 1.8mm
Military Standard Not
Current Rating 3.9A
Depth 5.2mm
Shielding Shielded
HTS Code 8504.50.80.00
Resistance 12mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±30%
Size / Dimension 0.197Lx0.197W 5.00mmx5.00mm
Series R
Published 2011
Packaging Tape & Reel (TR)
Physical
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
