7443340047
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCC Nonstandard 0.331Lx0.311W 8.40mmx7.90mm 470nH
PDF
/
Buying Options
Total Price: USD $1.88
Unit Price: USD $1.8832
≥1 USD $1.8832
≥10 USD $1.8304
≥100 USD $1.7336
≥500 USD $1.672
≥1000 USD $1.6104
Inventory: 368
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-HCC
Size / Dimension 0.331Lx0.311W 8.40mmx7.90mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 19A
Shielding Shielded
Current Rating 19A
Inductance 470nH
Test Frequency 100kHz
DC Resistance (DCR) 3.1mOhm Max
Max DC Current 19A
Frequency - Self Resonant 232MHz
Inductance Frequency - Test 100kHz
Current - Saturation 32A
Inductance Tolerance 20%
RMS Current (Irms) 19A
Dimensions
Height 7.2mm
Height Seated (Max) 0.295 7.50mm
Length 8.4074mm
Width 7.8994mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant

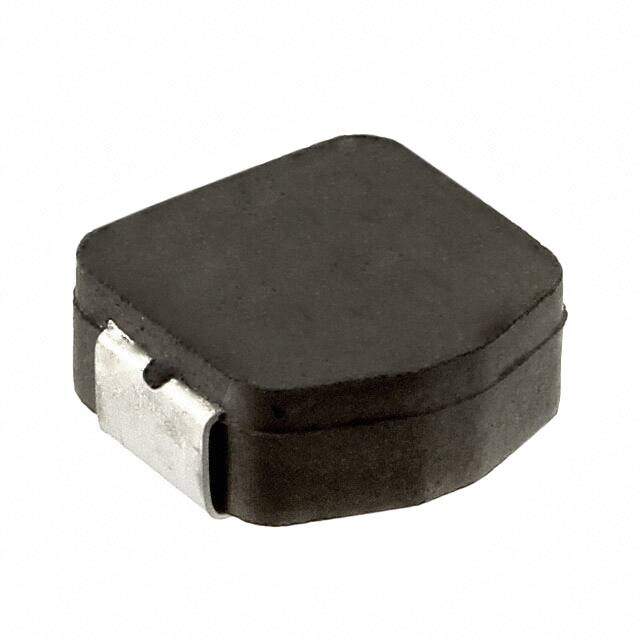

Alternative Model
