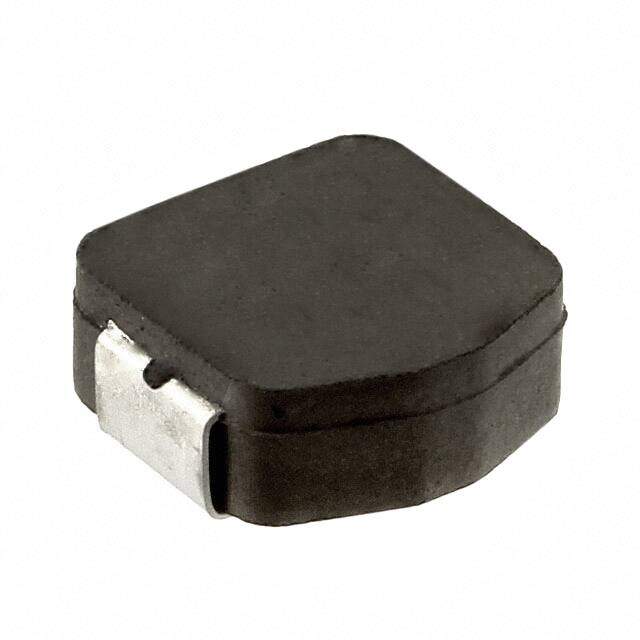

MPLCG0630LR47
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
MPLCG Nonstandard 0.295Lx0.264W 7.50mmx6.70mm 470nH
PDF
/
Buying Options
Total Price: USD $1.4
Unit Price: USD $1.3992
≥1 USD $1.3992
≥10 USD $1.19064
≥100 USD $1.097184
≥500 USD $0.980496
≥1000 USD $0.81708
≥3000 USD $0.793725
Inventory: 423
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 29 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Surface Mount YES
Terminal Shape WRAPAROUND
Material - Core Metal Composite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -20°C~120°C
Packaging Tape & Reel (TR)
Published 2011
Series MPLCG
Size / Dimension 0.295Lx0.264W 7.50mmx6.70mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Current Rating (Amps) 15.8A
Shielding Shielded
Number of Functions 1
Inductance 470nH
Test Frequency 0.1MHz
DC Resistance (DCR) 5mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Current - Saturation 15.6A
Rated Current-Max 15.8A
Inductance Tolerance 20%
Dimensions
Height Seated (Max) 0.118 3.00mm
Compliance
RoHS Status ROHS3 Compliant
