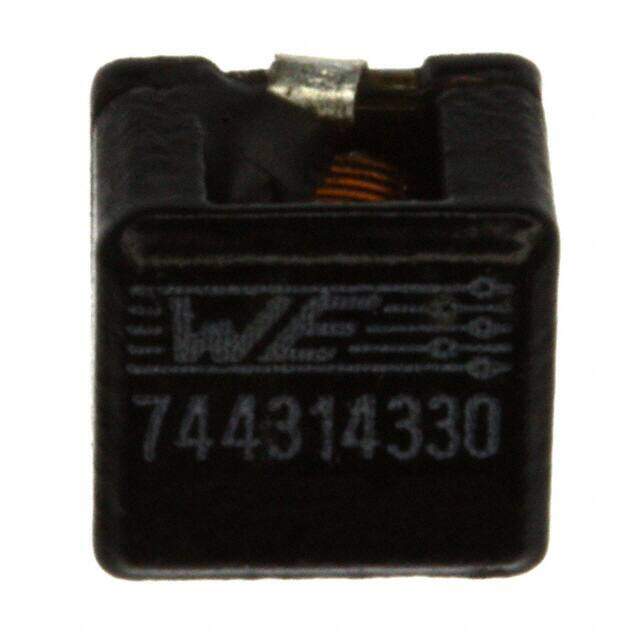

744314330
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCI Nonstandard 0.276Lx0.272W 7.00mmx6.90mm 3.3muH
PDF
/
Buying Options
Total Price: USD $0.69
Unit Price: USD $0.6916
≥1 USD $0.6916
≥10 USD $0.5681
≥100 USD $0.55005
≥500 USD $0.532
≥1000 USD $0.5149
Inventory: 1140
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Supplier Device Package 7050
Technical
Operating Temperature -40°C~150°C
Packaging Tape & Reel (TR)
Series WE-HCI
Size / Dimension 0.276Lx0.272W 7.00mmx6.90mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 9mOhm
Max Operating Temperature 150°C
Min Operating Temperature -40°C
Current Rating (Amps) 9A
Shielding Shielded
Depth 7.2mm
Current Rating 9A
Military Standard Not
Inductance 3.3μH
Test Frequency 100kHz
DC Resistance (DCR) 9mOhm
Max DC Current 9A
Frequency - Self Resonant 65MHz
Inductance Frequency - Test 100kHz
Current - Saturation 8A
Inductance Tolerance 20%
RMS Current (Irms) 9A
Series Resistance 9Ohm
Dimensions
Height 4.8mm
Height Seated (Max) 0.197 5.00mm
Length 7mm
Width 6.9mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings AEC-Q200
Alternative Model
