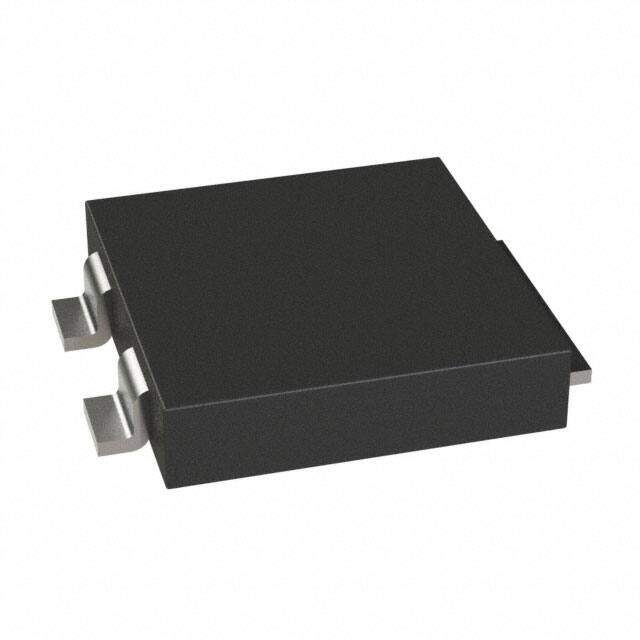

74431323016
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active Tape & Reel (TR) Fixed Inductor -40C~125C 113MHz 0.7mOhm 160nH
PDF
/
Buying Options
Total Price: USD $2.06
Unit Price: USD $2.060353
≥1 USD $2.060353
≥10 USD $1.94373
≥100 USD $1.833702
≥500 USD $1.729912
≥1000 USD $1.631996
Inventory: 1192
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.091 2.30mm
Technical
Current - Saturation 33A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 113MHz
DC Resistance (DCR) 0.7mOhm
Inductance 160nH
Shielding Shielded
Current Rating (Amps) 26A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±15%
Size / Dimension 0.512Lx0.413W 13.00mmx10.50mm
Series WE-HCM
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Manganese Zinc Ferrite (MnZn)
Supplier Device Package 1323
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
Alternative Model
