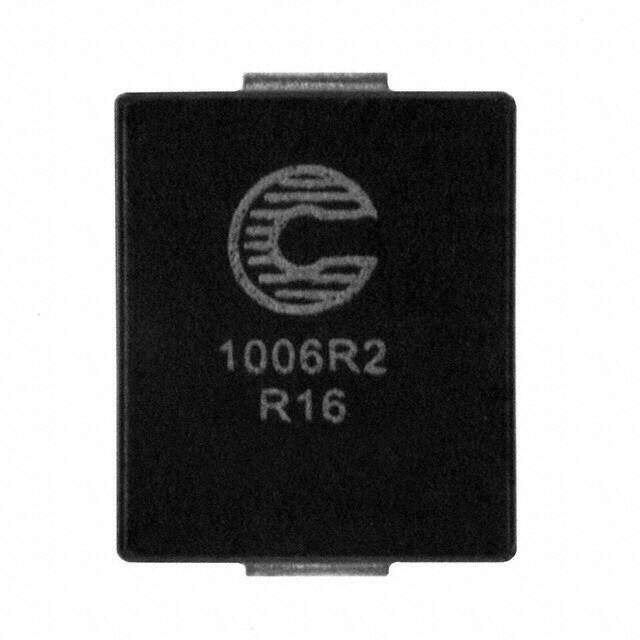

FP1006R2-R16-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FLAT-PAC FP1006 Nonstandard 0.394Lx0.315W 10.00mmx8.00mm 160nH
PDF
/
Inventory: 9837
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Weight 453.59237mg
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series FLAT-PAC, FP1006
Size / Dimension 0.394Lx0.315W 10.00mmx8.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 45A
Shielding Unshielded
Depth 8mm
Current Rating 45A
Inductance 160nH
Test Frequency 100kHz
DC Resistance (DCR) 0.36mOhm
Max DC Current 45A
Inductance Frequency - Test 100kHz
Current - Saturation 55A
Self Resonant Frequency 2MHz
Dimensions
Height 6mm
Height Seated (Max) 0.236 6.00mm
Length 10mm
Width 8.001mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
