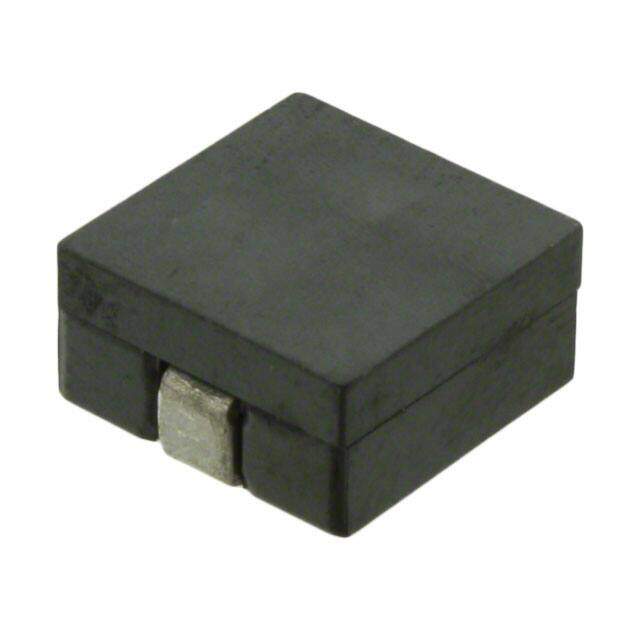

744308025 image
Favorite
744308025 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-HCM Nonstandard 0.398Lx0.276W 10.10mmx7.00mm 250nH
PDF
/
Buying Options
Total Price: USD $15.39
Unit Price: USD $15.39095
≥1 USD $15.39095
≥10 USD $12.62835
≥100 USD $12.2341
≥500 USD $11.8389
≥1000 USD $11.44465
Inventory: 1512
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Width 7.0104mm
Length 10.1092mm
Height Seated (Max) 0.276 7.00mm
Height 6.8mm

Technical

Inductance Tolerance 20%
Current - Saturation 44A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 40MHz
Max DC Current 27A
DC Resistance (DCR) 0.37mOhm
Test Frequency 100kHz
Inductance 250nH
Current Rating 25A
Shielding Shielded
Current Rating (Amps) 25A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.398Lx0.276W 10.10mmx7.00mm
Series WE-HCM
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Manganese Zinc Ferrite (MnZn)
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 10 Weeks
