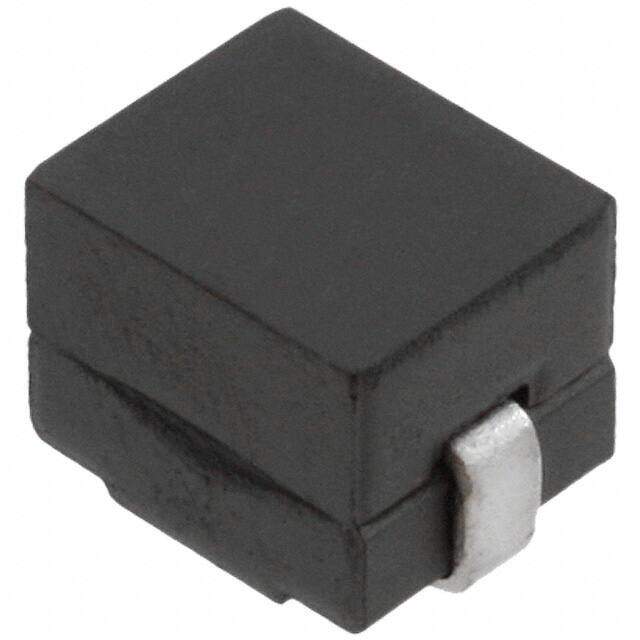

PA2607.301AHL image
Favorite
PA2607.301AHL image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description GENERAL PURPOSE INDUCTOR RoHS Compliant Active WRAPAROUND fixed air core inductor -40C~130C 100kHz 0.29mOhm 300nH
PDF
/
Buying Options
Total Price: USD $1.3
Unit Price: USD $1.3024
≥1 USD $1.3024
≥10 USD $1.1
≥100 USD $1.000032
≥500 USD $0.93984
≥1000 USD $0.779944
≥3000 USD $0.719928
Inventory: 120
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Height Seated (Max) 0.287 7.30mm

Technical

Rated Current-Max 27A
Case/Size Code 4130
Current - Saturation 32A
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
DC Resistance (DCR) 0.29mOhm
Test Frequency 100kHz
Inductance 300nH
Current Rating 41A
Number of Functions 1
Shielding Shielded
Current Rating (Amps) 27A
HTS Code 8504.50.80.00
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±15%
Size / Dimension 0.406Lx0.301W 10.31mmx7.65mm
Series PA2607AHL
Packaging Tray
Operating Temperature -40°C~130°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 11 Weeks
