74408943022
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-SPC Nonstandard 0.189Lx0.189W 4.80mmx4.80mm 2.2muH
PDF
/
Buying Options
Total Price: USD $2.77
Unit Price: USD $2.76545
≥1 USD $2.76545
≥10 USD $2.26955
≥100 USD $2.1983
≥500 USD $2.12705
≥1000 USD $2.05675
Inventory: 1111
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-SPC
Size / Dimension 0.189Lx0.189W 4.80mmx4.80mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 3A
Shielding Shielded
Depth 5.1mm
Current Rating 3A
Military Standard Not
Inductance 2.2μH
Test Frequency 100kHz
DC Resistance (DCR) 30mOhm Max
Max DC Current 3A
Frequency - Self Resonant 85MHz
Inductance Frequency - Test 100kHz
Current - Saturation 4.6A
Inductance Tolerance 20%
DC Current 3A
RMS Current (Irms) 3A
Dimensions
Height 3.8mm
Height Seated (Max) 0.161 4.10mm
Length 4.8mm
Width 4.8006mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant

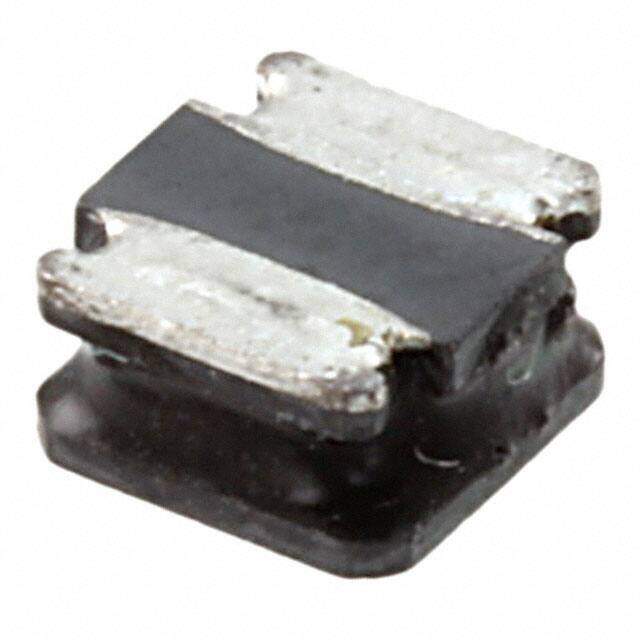

Alternative Model
