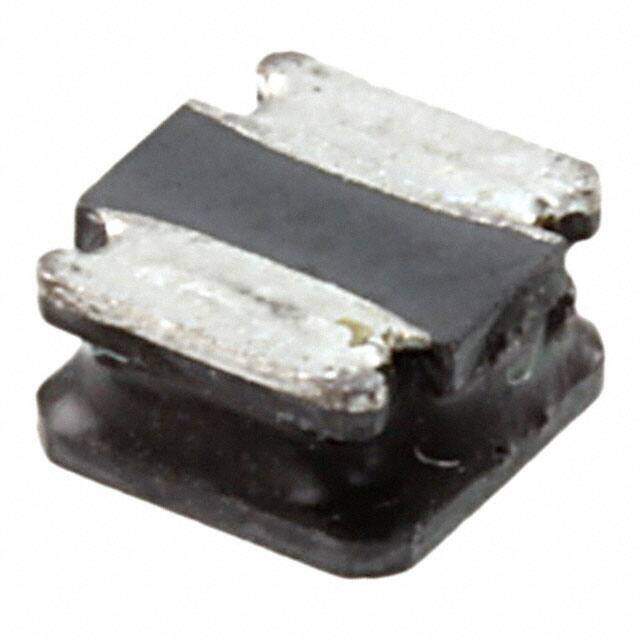

SRN4026-2R2Y
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRN4026 Nonstandard 0.157Lx0.157W 4.00mmx4.00mm 2.2muH
PDF
/
Buying Options
Total Price: USD $0.35
Unit Price: USD $0.352
≥1 USD $0.352
≥10 USD $0.30448
≥100 USD $0.278784
≥500 USD $0.253616
≥1000 USD $0.225632
≥3000 USD $0.21296
Inventory: 1246
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Weight 139.989945mg
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2014
Series SRN4026
Size / Dimension 0.157Lx0.157W 4.00mmx4.00mm
Tolerance ±30%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Packing Method TR, EMBOSSED, 13 INCH
Shielding YES
Number of Functions 1
Depth 4mm
Construction Chip
Current Rating 2.1A
Inductance 2.2μH
Test Frequency 100kHz
DC Resistance (DCR) 29mOhm Max
Max DC Current 2.1A
Frequency - Self Resonant 60MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 9 @ 7.96MHz
Case/Size Code 1616
Inductance Tolerance 30%
RMS Current (Irms) 2.1A
Dimensions
Height 2.5mm
Height Seated (Max) 0.098 2.50mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
