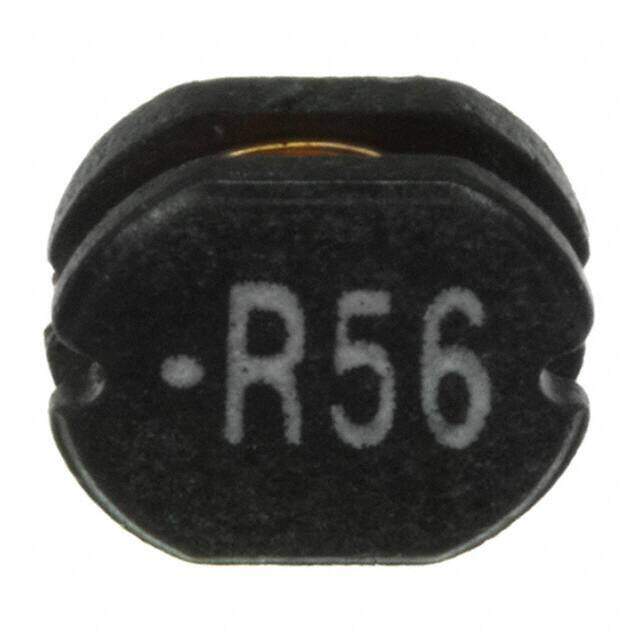

744089430056
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-SPC Nonstandard 0.189Lx0.189W 4.80mmx4.80mm 560nH
PDF
/
Buying Options
Total Price: USD $1.81
Unit Price: USD $1.805291
≥1 USD $1.805291
≥10 USD $1.703102
≥100 USD $1.606701
≥500 USD $1.51576
≥1000 USD $1.429961
Inventory: 1147
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
Series WE-SPC
Size / Dimension 0.189Lx0.189W 4.80mmx4.80mm
Tolerance ±30%
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 3.8A
Shielding Shielded
Depth 4.8mm
Current Rating 3.8A
Inductance 560nH
Test Frequency 100kHz
DC Resistance (DCR) 17mOhm Max
Max DC Current 3.8A
Frequency - Self Resonant 130MHz
Inductance Frequency - Test 100kHz
Current - Saturation 8.1A
Inductance Tolerance 30%
RMS Current (Irms) 3.8A
Dimensions
Height 3.8mm
Height Seated (Max) 0.161 4.10mm
Length 4.8mm
Width 4.8006mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
