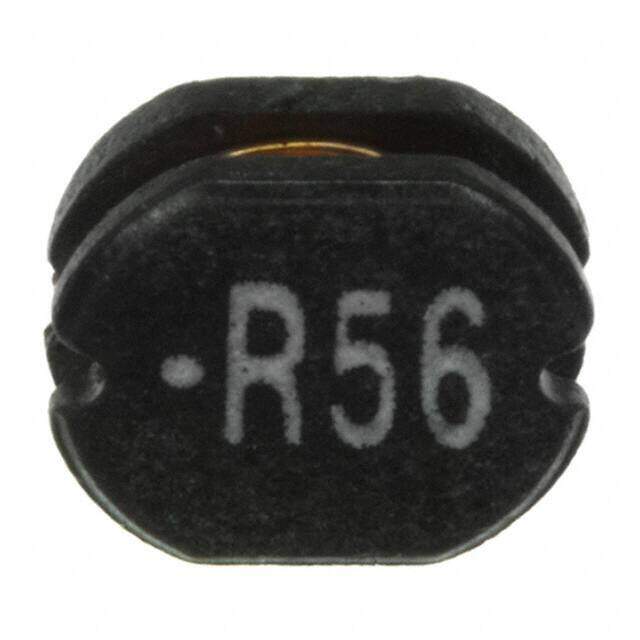

74477450056
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD2 Nonstandard 0.228Lx0.205W 5.80mmx5.20mm 560nH
PDF
/
Inventory: 5786
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 5.207mm
Length 5.7912mm
Height Seated (Max) 0.091 2.30mm
Height 2mm
Technical
RMS Current (Irms) 6.5A
Inductance Tolerance 20%
Current - Saturation 6.5A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 145MHz
Max DC Current 6.5A
DC Resistance (DCR) 10mOhm Max
Test Frequency 100kHz
Inductance 560nH
Current Rating 6.5A
Depth 5.8mm
Shielding Unshielded
Current Rating (Amps) 6.5A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 10mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
Series WE-PD2
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
