744071680
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-TPC Nonstandard 0.315Lx0.315W 8.00mmx8.00mm 68muH
PDF
/
Buying Options
Total Price: USD $0.81
Unit Price: USD $0.8056
≥1 USD $0.8056
≥10 USD $0.6612
≥100 USD $0.6403
≥500 USD $0.62035
≥1000 USD $0.59945
Inventory: 66805
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 42 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
Series WE-TPC
Size / Dimension 0.315Lx0.315W 8.00mmx8.00mm
Tolerance ±30%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1.3A
Shielding Shielded
Current Rating 1.3A
Inductance 68μH
Test Frequency 100kHz
DC Resistance (DCR) 230mOhm Max
Max DC Current 1.3A
Frequency - Self Resonant 8MHz
Inductance Frequency - Test 100kHz
Current - Saturation 1.1A
Inductance Tolerance 30%
RMS Current (Irms) 1.3A
Dimensions
Height 4.3mm
Height Seated (Max) 0.181 4.60mm
Length 8mm
Width 8mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant

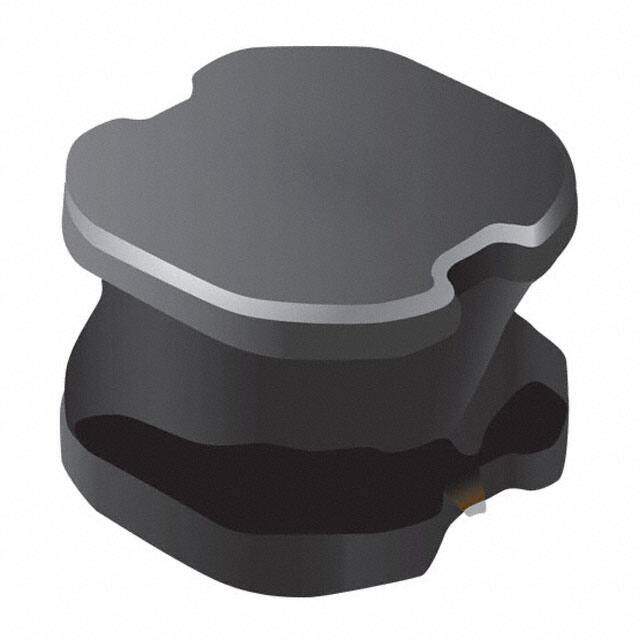

Alternative Model
