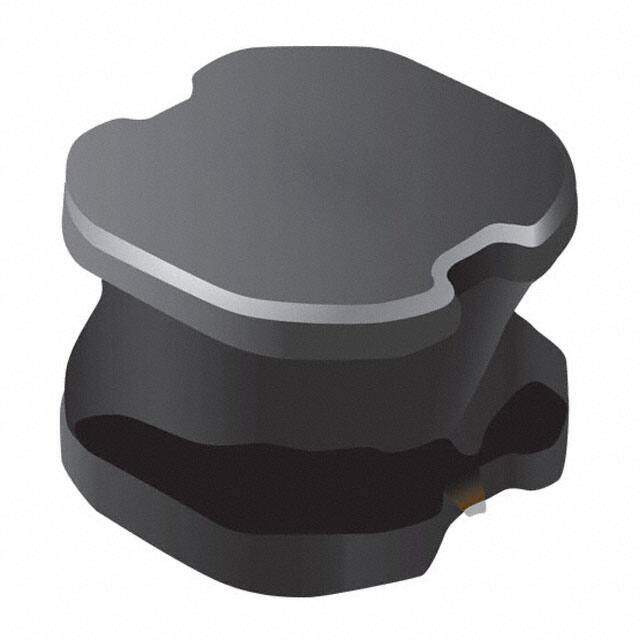

SRN6045-680M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRN6045 Nonstandard 0.236Lx0.236W 6.00mmx6.00mm 68muH
PDF
/
Buying Options
Total Price: USD $0.44
Unit Price: USD $0.44
≥1 USD $0.44
≥10 USD $0.37664
≥100 USD $0.345312
≥500 USD $0.313984
≥1000 USD $0.2794
≥3000 USD $0.263718
Inventory: 77859
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Number of Pins 2
Weight 785.990529mg
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2006
Series SRN6045
Size / Dimension 0.236Lx0.236W 6.00mmx6.00mm
Tolerance ±20%
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)
HTS Code 8504.50.80.00
Packing Method TR, 13 Inch
Shielding YES
Number of Functions 1
Depth 6.2mm
Construction Chip
Current Rating 900mA
Military Standard Not
Inductance 68μH
Test Frequency 100kHz
DC Resistance (DCR) 351mOhm Max
Max DC Current 900mA
Frequency - Self Resonant 6MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 13 @ 2.52MHz
Current - Saturation 1A
Inductance Tolerance 20%
DC Current 900mA
RMS Current (Irms) 900mA
Dimensions
Height 4.5mm
Height Seated (Max) 0.177 4.50mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
