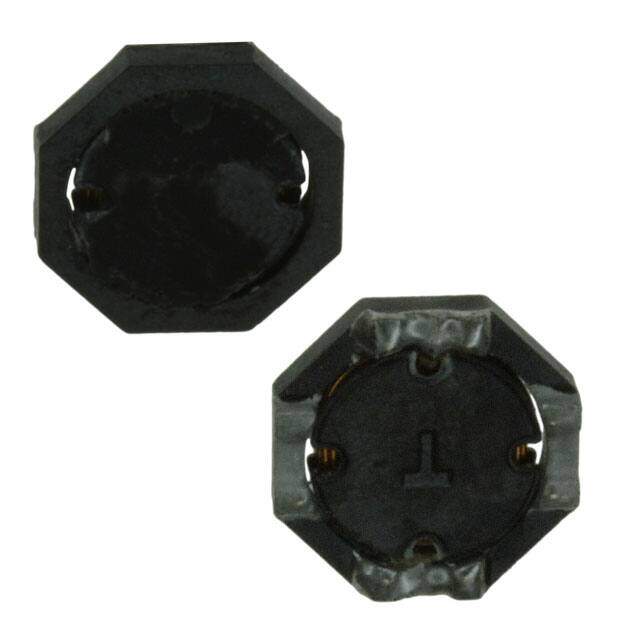

7440700100 image
Favorite
7440700100 image
Favorite

7440700100

Würth Elektronik
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-TPC Nonstandard 0.315Lx0.315W 8.00mmx8.00mm 10muH
PDF
/
Buying Options
Total Price: USD $2.55
Unit Price: USD $2.55075
≥1 USD $2.55075
≥10 USD $2.09285
≥100 USD $2.0273
≥500 USD $1.9627
≥1000 USD $1.89715
Inventory: 1252
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 8mm
Length 8mm
Height Seated (Max) 0.079 2.00mm
Height 1.8mm

Technical

RMS Current (Irms) 2A
Inductance Tolerance 30%
Current - Saturation 1.55A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 30MHz
Max DC Current 2A
DC Resistance (DCR) 94mOhm Max
Test Frequency 100kHz
Inductance 10μH
Current Rating 2A
Depth 8mm
Shielding Shielded
Current Rating (Amps) 2A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 78mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Size / Dimension 0.315Lx0.315W 8.00mmx8.00mm
Series WE-TPC
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 12 Weeks
