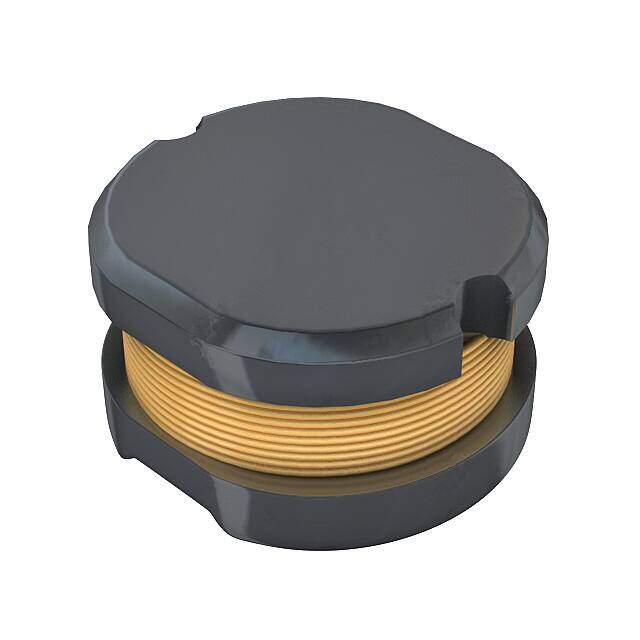

SRU3028-100M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRU3028 Nonstandard 0.138Lx0.130W 3.50mmx3.30mm 10muH
PDF
/
Buying Options
Total Price: USD $0.74
Unit Price: USD $0.7392
≥1 USD $0.7392
≥10 USD $0.63624
≥100 USD $0.583264
≥500 USD $0.530112
≥1000 USD $0.471856
≥3000 USD $0.44535
Inventory: 1098
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 3.302mm
Length 3.5mm
Height Seated (Max) 0.118 3.00mm
Height 2.8mm
Technical
DC Current 720mA
Current - Saturation 860mA
Inductance Frequency - Test 100kHz
Q @ Freq 20 @ 7.96MHz
Frequency - Self Resonant 35MHz
Max DC Current 720mA
DC Resistance (DCR) 160mOhm
Test Frequency 100kHz
Inductance 10μH
Military Standard Not
Base Part Number SRU3028
Current Rating 720mA
Depth 3.5mm
Shielding Shielded
Current Rating (Amps) 720mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.138Lx0.130W 3.50mmx3.30mm
Series SRU3028
Published 2005
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Weight 47.995743mg
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
