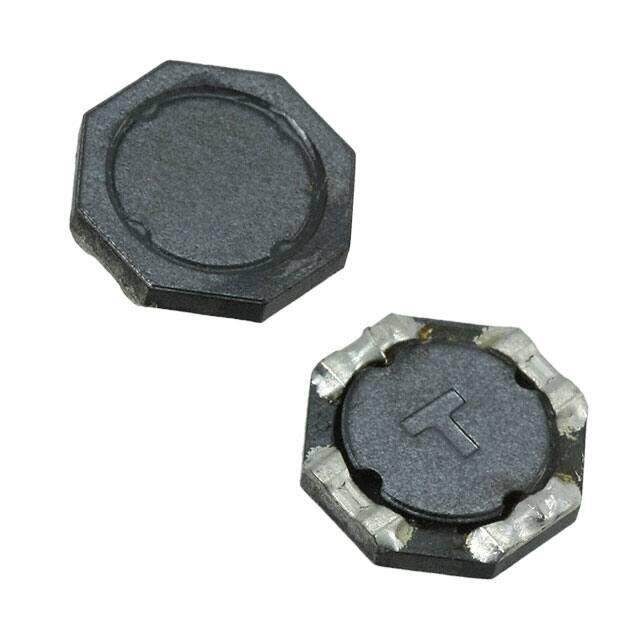

7440690100
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-TPC Nonstandard 0.315Lx0.315W 8.00mmx8.00mm 10muH
PDF
/
Buying Options
Total Price: USD $1.37
Unit Price: USD $1.369253
≥1 USD $1.369253
≥10 USD $1.291748
≥100 USD $1.218626
≥500 USD $1.149648
≥1000 USD $1.084574
Inventory: 1151
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 8.001mm
Length 8.001mm
Height Seated (Max) 0.059 1.50mm
Height 1.35mm
Technical
RMS Current (Irms) 1.55A
Inductance Tolerance 20%
Current - Saturation 1.25A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 10MHz
Max DC Current 1.55A
DC Resistance (DCR) 135mOhm Max
Test Frequency 100kHz
Inductance 10μH
Current Rating 1.55A
Shielding Shielded
Current Rating (Amps) 1.55A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 112mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.315Lx0.315W 8.00mmx8.00mm
Series WE-TPC
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks

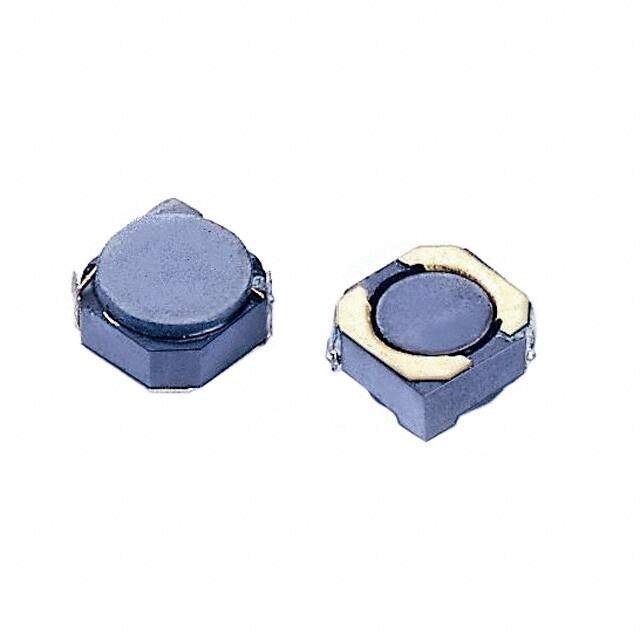

Alternative Model
