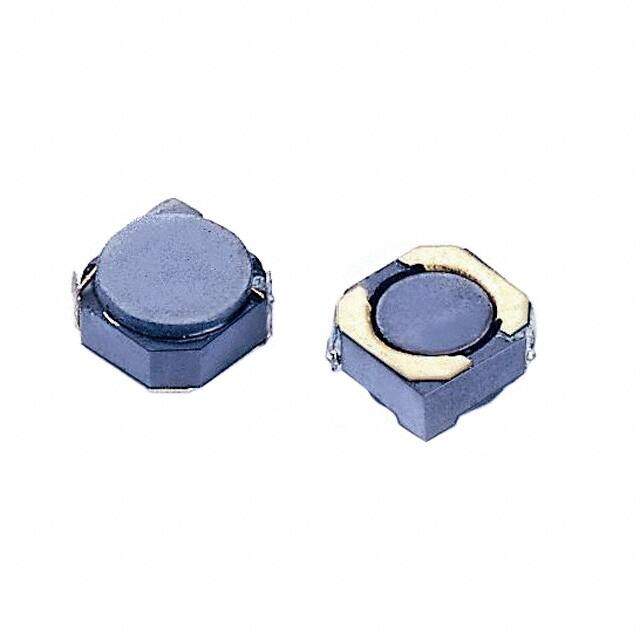

SCRH3D16A-100
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 10UH 1.08A 210 MOHM
PDF
/
Inventory: 3762
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 4.0894mm
Length 4.0894mm
Height Seated (Max) 0.075 1.90mm
Technical
Current - Saturation 550mA
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 210mOhm Max
Test Frequency 100kHz
Inductance 10μH
Current Rating 1.08A
Shielding Shielded
Current Rating (Amps) 1.08A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Size / Dimension 0.161Lx0.161W 4.10mmx4.10mm
Series SCRH3D16A
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
