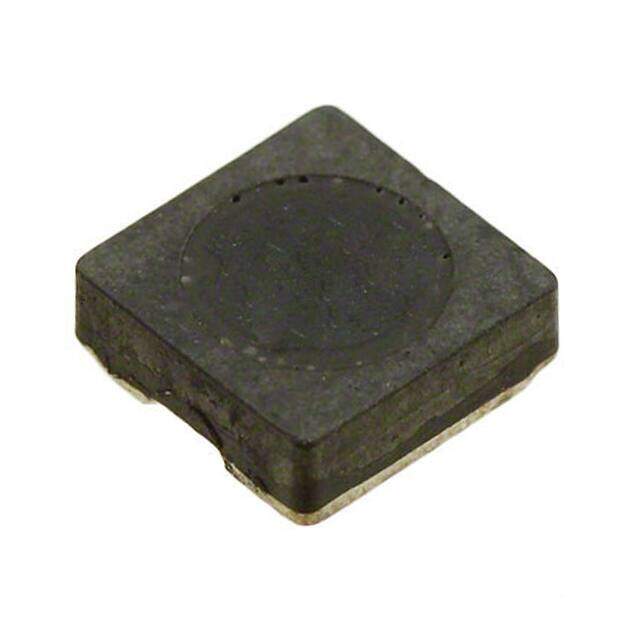

744043005 image
Favorite
744043005 image
Favorite
RoHS
RoHS RoHS compliant
Package 1919 (4848 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-TPC 1919 (4848Metric) 0.189Lx0.189W 4.80mmx4.80mm 5.6muH
PDF
/
Buying Options
Total Price: USD $9.13
Unit Price: USD $9.13425
≥1 USD $9.13425
≥10 USD $7.4955
≥100 USD $7.26085
≥500 USD $7.0262
≥1000 USD $6.7925
Inventory: 8339
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1919 (4848 Metric)
Weight 256.988427mg
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-TPC
Size / Dimension 0.189Lx0.189W 4.80mmx4.80mm
Tolerance ±30%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1.38A
Shielding Shielded
Current Rating 1.38A
Case Code (Metric) 4848
Case Code (Imperial) 1919
Inductance 5.6μH
Test Frequency 100kHz
DC Resistance (DCR) 85mOhm Max
Max DC Current 1.38A
Frequency - Self Resonant 60MHz
Inductance Frequency - Test 100kHz
Current - Saturation 1.3A
Inductance Tolerance 30%
RMS Current (Irms) 1.38A

Dimensions

Height 2.8mm
Height Seated (Max) 0.118 3.00mm
Length 4.8mm
Width 4.8mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
