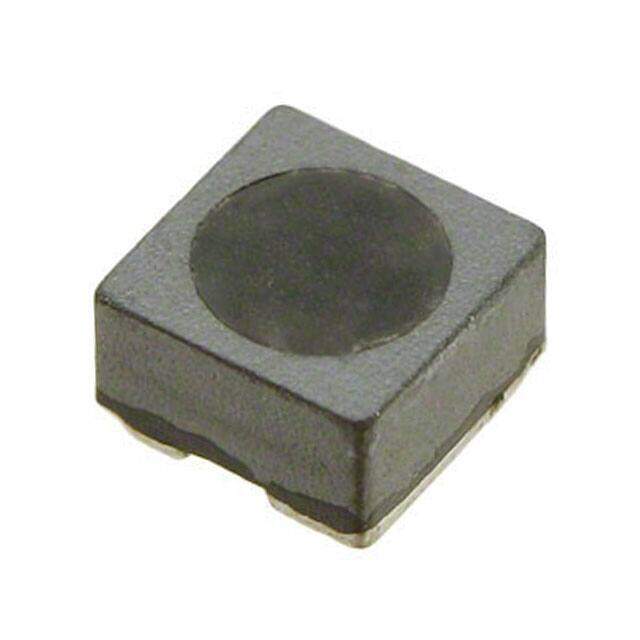

744042005
RoHS
RoHS compliant
RoHS compliantPackage 1919 (4848 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-TPC 1919 (4848Metric) 0.189Lx0.189W 4.80mmx4.80mm 5.6muH
PDF
/
Buying Options
Total Price: USD $11.33
Unit Price: USD $11.33065
≥1 USD $11.33065
≥10 USD $9.2967
≥100 USD $9.00695
≥500 USD $8.71625
≥1000 USD $8.42555
Inventory: 1063
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 4.8mm
Length 4.8mm
Height Seated (Max) 0.079 2.00mm
Height 1.8mm
Technical
RMS Current (Irms) 1.64A
Inductance Tolerance 30%
Current - Saturation 1.35A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 55MHz
Max DC Current 1.62A
DC Resistance (DCR) 90mOhm Max
Test Frequency 100kHz
Inductance 5.6μH
Case Code (Imperial) 1919
Case Code (Metric) 4848
Current Rating 1.64A
Shielding Shielded
Current Rating (Amps) 1.64A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Size / Dimension 0.189Lx0.189W 4.80mmx4.80mm
Series WE-TPC
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Weight 164.994225mg
Package / Case 1919 (4848 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
