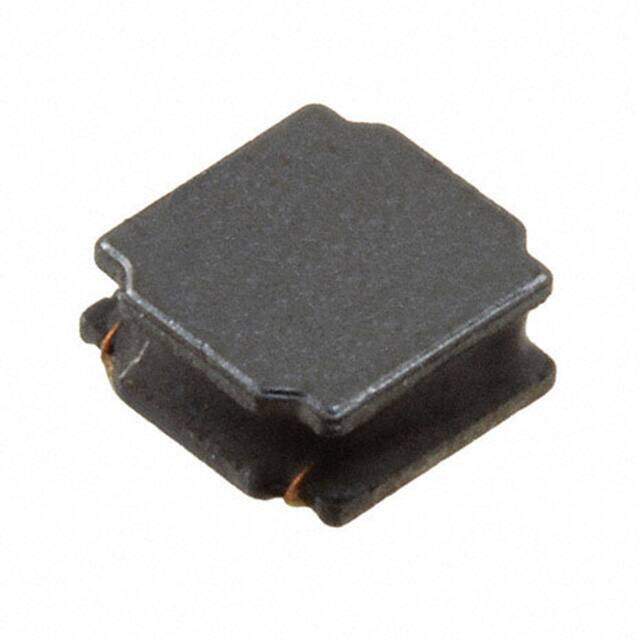

74404042033
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-LQS Nonstandard 0.157Lx0.157W 4.00mmx4.00mm 3.3muH
PDF
/
Buying Options
Total Price: USD $0.93
Unit Price: USD $0.928533
≥1 USD $0.928533
≥10 USD $0.875968
≥100 USD $0.826388
≥500 USD $0.779614
≥1000 USD $0.735483
Inventory: 1185
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 3.9878mm
Length 3.9878mm
Height Seated (Max) 0.071 1.80mm
Height 1.8mm
Technical
RMS Current (Irms) 2A
Inductance Tolerance 20%
Current - Saturation 2.9A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 56MHz
Max DC Current 2A
DC Resistance (DCR) 55mOhm
Test Frequency 100kHz
Inductance 3.3μH
Current Rating 2A
Shielding Shielded
Current Rating (Amps) 2A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.157Lx0.157W 4.00mmx4.00mm
Series WE-LQS
Packaging Digi-Reel?
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Supplier Device Package 4018
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 77 Weeks
