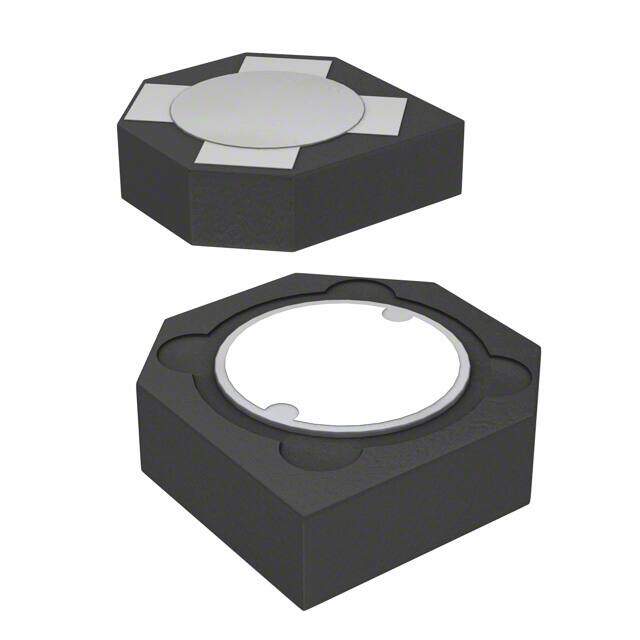

744030006 image
Favorite
744030006 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-TPC Nonstandard 0.138Lx0.130W 3.50mmx3.30mm 6.8muH
PDF
/
Buying Options
Total Price: USD $11.36
Unit Price: USD $11.36485
≥1 USD $11.36485
≥10 USD $9.3252
≥100 USD $9.03355
≥500 USD $8.7419
≥1000 USD $8.4512
Inventory: 1332
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 3.302mm
Length 3.5052mm
Height Seated (Max) 0.041 1.05mm
Height 950μm

Technical

RMS Current (Irms) 400mA
Inductance Tolerance 30%
Current - Saturation 430mA
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 85MHz
Max DC Current 400mA
DC Resistance (DCR) 500mOhm Max
Test Frequency 100kHz
Inductance 6.8μH
Current Rating 400mA
Shielding Shielded
Current Rating (Amps) 400mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Tolerance ±30%
Size / Dimension 0.138Lx0.130W 3.50mmx3.30mm
Series WE-TPC
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
