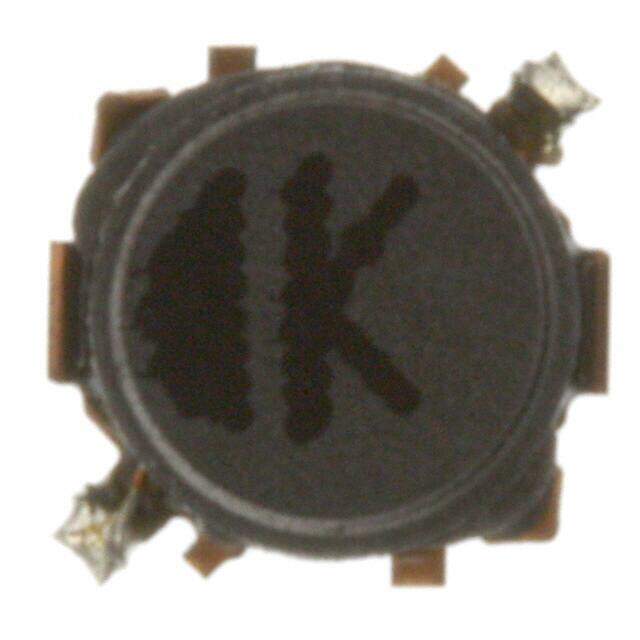

ELL-VEG6R8N image
Favorite
ELL-VEG6R8N image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description G Nonstandard 0.118Lx0.118W 3.00mmx3.00mm 6.8muH
PDF
/
Buying Options
Total Price: USD $3.25
Unit Price: USD $3.24805
≥1 USD $3.24805
≥10 USD $2.6657
≥100 USD $2.5821
≥500 USD $2.4985
≥1000 USD $2.41585
Inventory: 56209
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.039 1.00mm
Height 1mm

Technical

Self Resonant Frequency 100kHz
Series Resistance 350mOhm
DC Current 650mA
Inductance Tolerance 30%
Terminal Placement DUAL ENDED
Inductor Application DC-DC CONVERTER
Max DC Current 580mA
DC Resistance (DCR) 350mOhm
Test Frequency 100kHz
Inductance 6.8μH
Military Standard Not
Current Rating 650mA
Depth 3.2mm
Number of Functions 1
Shielding YES
Packing Method TR, Embossed
HTS Code 8504.50.80.00
Min Operating Temperature -55°C
Max Operating Temperature 150°C
Terminal Finish Tin (Sn)
Resistance 350mOhm
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Tolerance ±30%
Size / Dimension 0.118Lx0.118W 3.00mmx3.00mm
Series G
Published 2008
Packaging Tape & Reel (TR)

Physical

Number of Pins 2
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 10 Weeks
