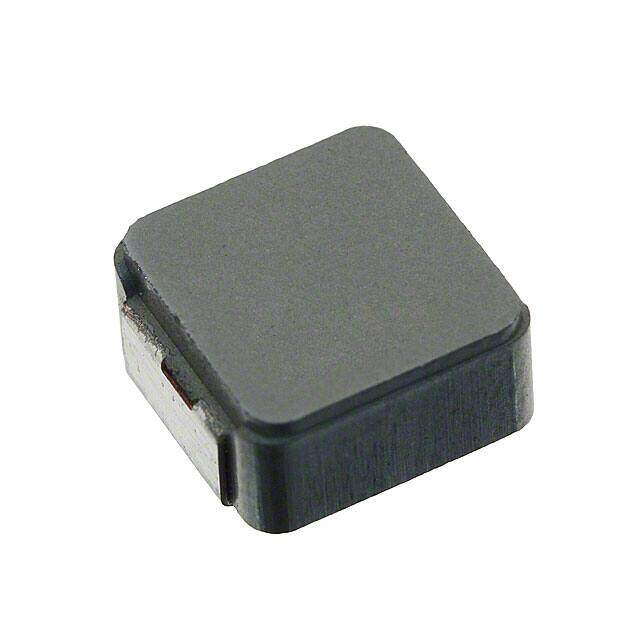

IHLP3232DZERR22M5A
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
IHLP-3232DZ-5A Nonstandard 0.322Lx0.322W 8.18mmx8.18mm 220nH
PDF
/
Buying Options
Total Price: USD $1.18
Unit Price: USD $1.181935
≥1 USD $1.181935
≥10 USD $1.115036
≥100 USD $1.051919
≥500 USD $0.992376
≥1000 USD $0.936209
Inventory: 9118
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.157 4.00mm
Height 4mm
Technical
Current - Saturation 32A
Terminal Placement DUAL ENDED
Inductor Application HIGH CURRENT INDUCTOR
Frequency - Self Resonant 117MHz
Max DC Current 32A
DC Resistance (DCR) 1.86mOhm Max
Test Frequency 100kHz
Inductance 220nH
Military Standard Not
Current Rating 36A
Reach Compliance Code unknown
Construction RECTANGULAR PACKAGE
Depth 8.26mm
Number of Functions 1
Shielding YES
Packing Method TR, 13 Inch
HTS Code 8504.50.80.00
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Type Molded
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.322Lx0.322W 8.18mmx8.18mm
Series IHLP-3232DZ-5A
Published 2016
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Core Material COMPOSITE
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
