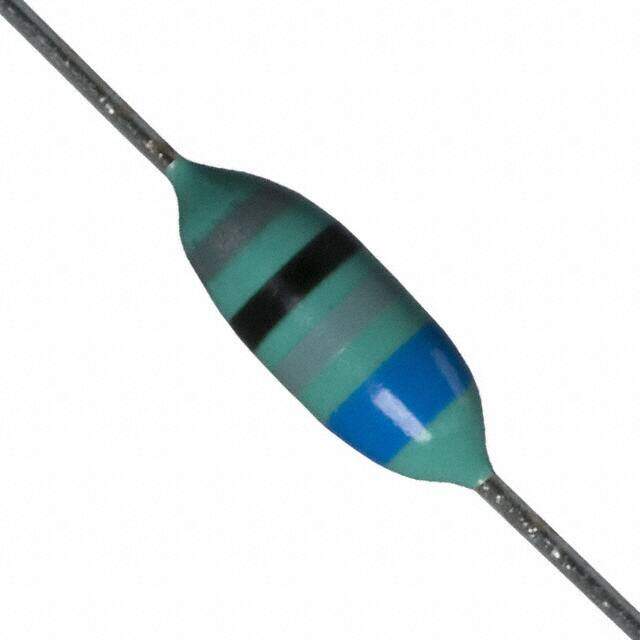

IHD3EB680L
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
IHD Axial 0.460Diax0.900L 11.68mmx22.86mm 68muH
PDF
/
Inventory: 2347
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Number of Pins 2
Material - Core Ferrite
Shape/Size Description TUBULAR PACKAGE
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2011
Series IHD
Size / Dimension 0.460Diax0.900L 11.68mmx22.86mm
Tolerance ±15%
JESD-609 Code e2
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin/Copper (Sn/Cu)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Construction Cylindrical
Current Rating 2.5A
Military Standard Not
Lead Diameter 0.813 mm
Inductance 68μH
Test Frequency 1kHz
DC Resistance (DCR) 59mOhm Max
Max DC Current 2.5A
Inductor Application HIGH CURRENT INDUCTOR
Current - Saturation 2.1A
Inductance Tolerance 15%
DC Current 2.5A
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
