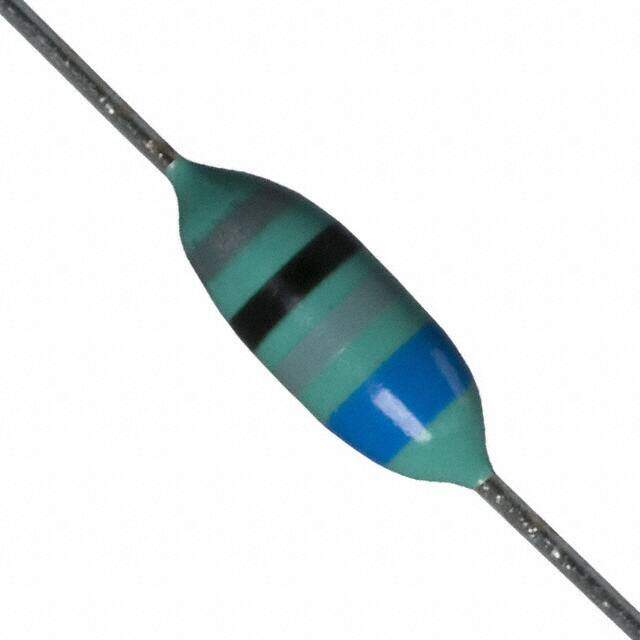

8230-64
RoHS
/
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
8230 Axial 0.120Diax0.300L 3.05mmx7.62mm 68muH
PDF
/
Inventory: 2714
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Supplier Device Package Axial
Material - Core Ferrite
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2006
Series 8230
Size / Dimension 0.120Diax0.300L 3.05mmx7.62mm
Tolerance ±10%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Axial
Type Wirewound
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Current Rating (Amps) 135mA
Shielding Unshielded
Current Rating 135mA
Base Part Number 8230
Lead Length 66.5mm
Inductance 68μH
Test Frequency 2.5MHz
DC Resistance (DCR) 6.7Ohm Max
Max DC Current 135mA
Frequency - Self Resonant 15MHz
Q @ Freq 50 @ 2.5MHz
Inductance Frequency - Test 2.5MHz
Q Factor 50
Dimensions
Diameter 3.05mm
Length 7.62mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
